Removing the Roll Holder from Rolls
Removing the Roll Holder from Rolls

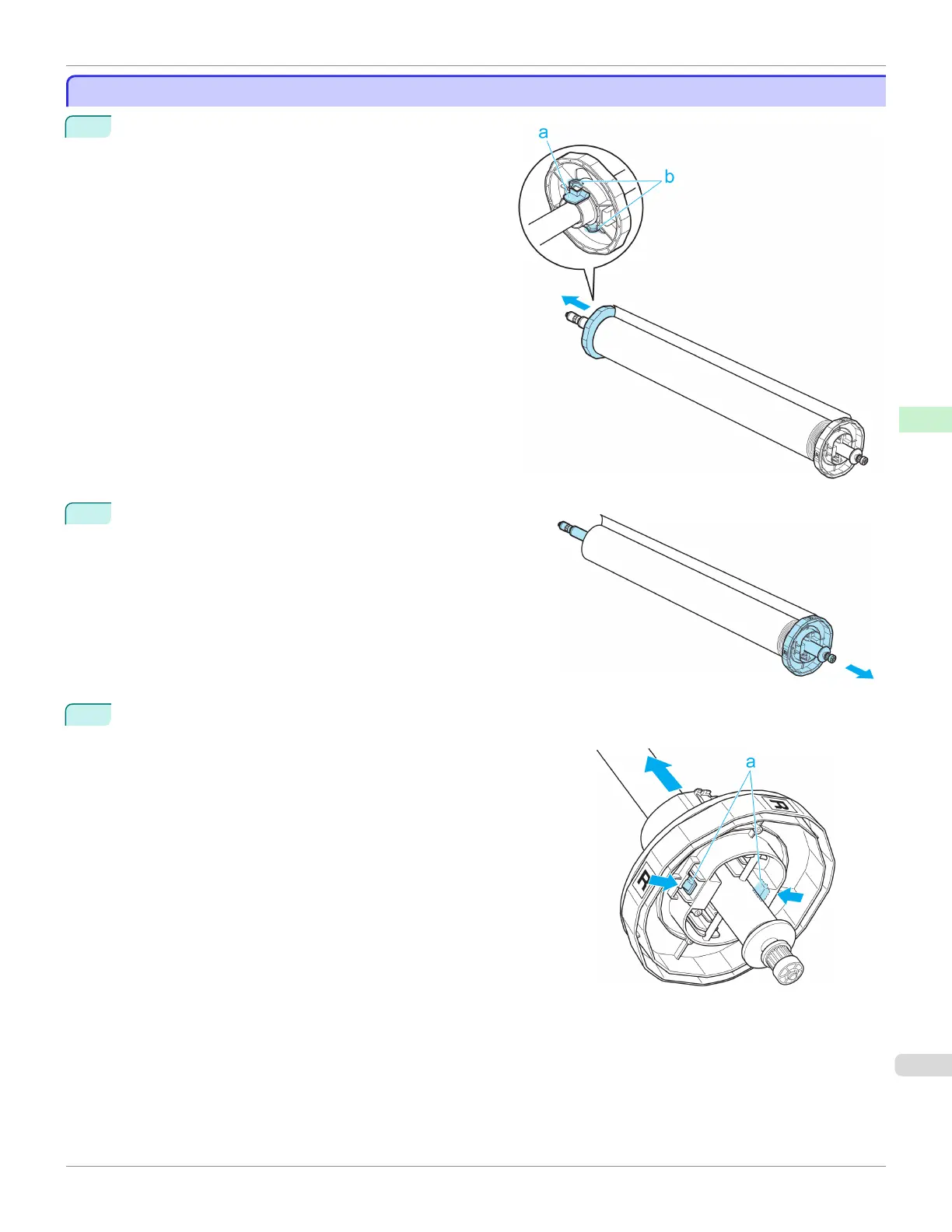

1
Lift the Holder Stopper lever (a) from the shaft side to
unlock it. Holding the Holder Stopper at the position in-
dicated (b), remove it from the Roll Holder.
2
Remove the Roll Holder from the roll.
3 When removing attachments, push the tips (a) in as you remove the attachment.
•
3-Inch Paper Core Attachment R (Roll Holder side)
