Menu Structure

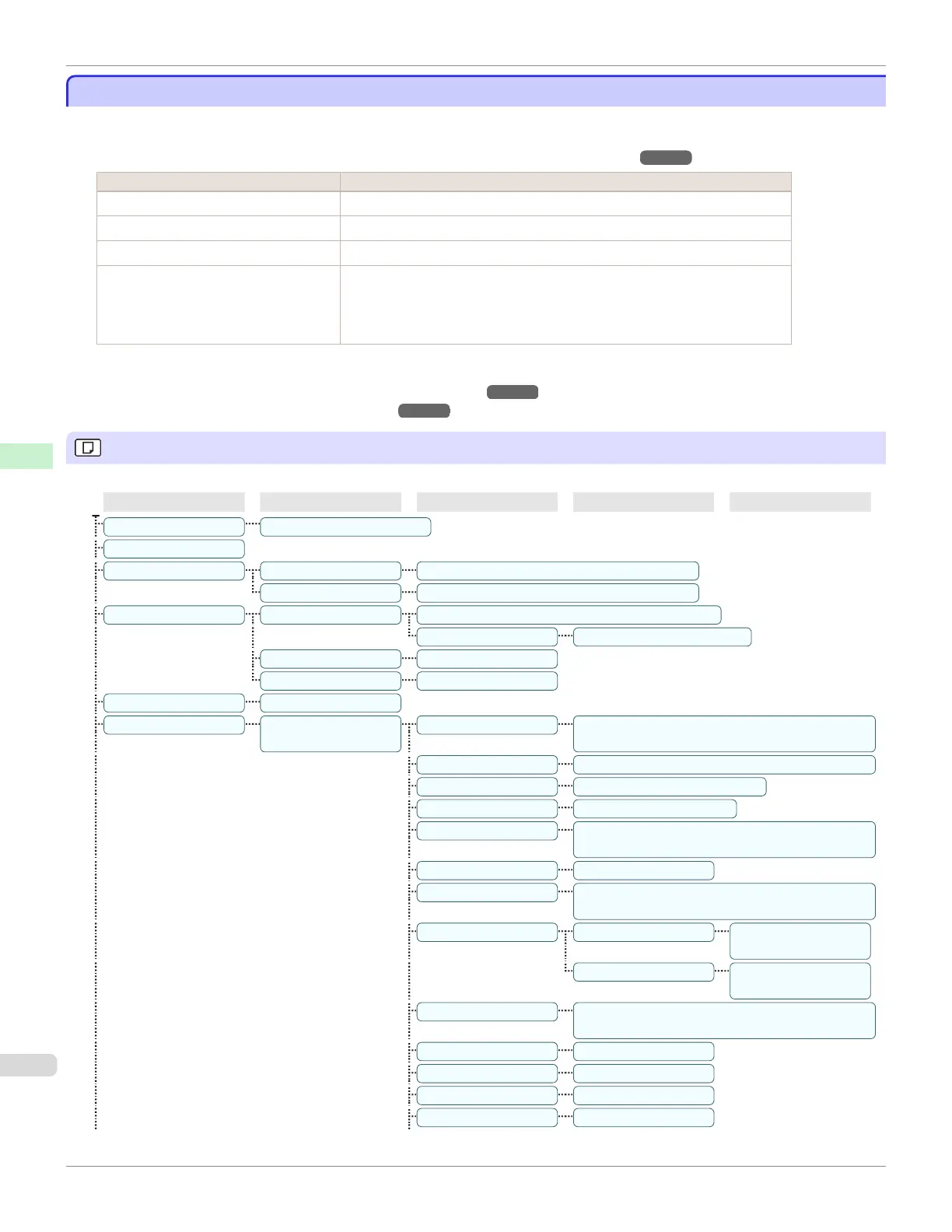

Menu Structure
The menu structure is shown categorized by tab. The * on the right side of an item indicates the default value.
The printer menu is classified into regular menu items available when no print job is in progress and menu during print-
ing items only available while printing is in progress. see "Printer Menu Operations." ➔ P.446
Regular menu Menu during printing
Paper Menu Not displayed
Ink Menu The same Ink Menu as normal is displayed.
Job Menu The same Job Menu as normal is displayed.
Set./Adj. Menu A limited Set./Adj. Menu containing the following items is displayed.
• Adj. Fine Feed(*1)
• Printer Info
*1: Only displayed in the menu during printing. Not displayed in the regular menu.
For instructions on menu operations, see "Menu Operations." ➔ P.447
For details on menu items, see "Menu Settings." ➔ P.456
Paper Menu
The Paper Menu is not displayed during printing.
First Level Second Level Third Level Fourth Level Fifth Level
Load Paper Roll Paper | Cut Sheet
Eject Paper
Chg. Paper Type(*1) Roll Paper (The paper type is displayed here.) (*1)
Cut Sheet (The paper type is displayed here.) (*1)
Chg. Paper Size Sheet Size (The size of paper is displayed here.) (*2)
CustomPaperSize (Set the length and width)
Roll Length(*3) (Set the length)
Roll Width(*4) (Set the width)
ManageRemainRoll Off* | On
Paper Details (The paper type is dis-
played here.) (*1)
Head Height Automatic* | Highest | High | Standard | Low | Low-
est | Super Low
Skew Check Lv. High Accuracy | Standard* | Loose | Off
Cutting Mode(*6) Automatic | Eject | Manual
Cut Speed Fast | Standard | Slow
Trim Edge First Automatic | Off | On (Preset Len) | On(Input
Length) | Manual
CutDustReduct. Off | On
VacuumStrngth Automatic* | Strongest | Strong | Standard | Weak |
Weakest
Scan Wait Time Dry time Off* | 1 sec. | 3 sec. | 5
sec. | 7 sec. | 9 sec.
Area(*5) Entire area* | Leading
edge
Roll DryingTime Off | 30 sec. | 1 min. | 3 min. | 5 min. | 10 min. | 30
min. | 60 min.
NearEnd RollMrgn 3mm | 20mm
NearEnd Sht Mrgn 3mm | 20mm
BordlessOversize Standard* | Little
Width Detection Off | On*
Menu Structure iPF680
User's Guide
Control Panel Printer Menu
450

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
