Canon imagePROGRAF iPF680 User Manual

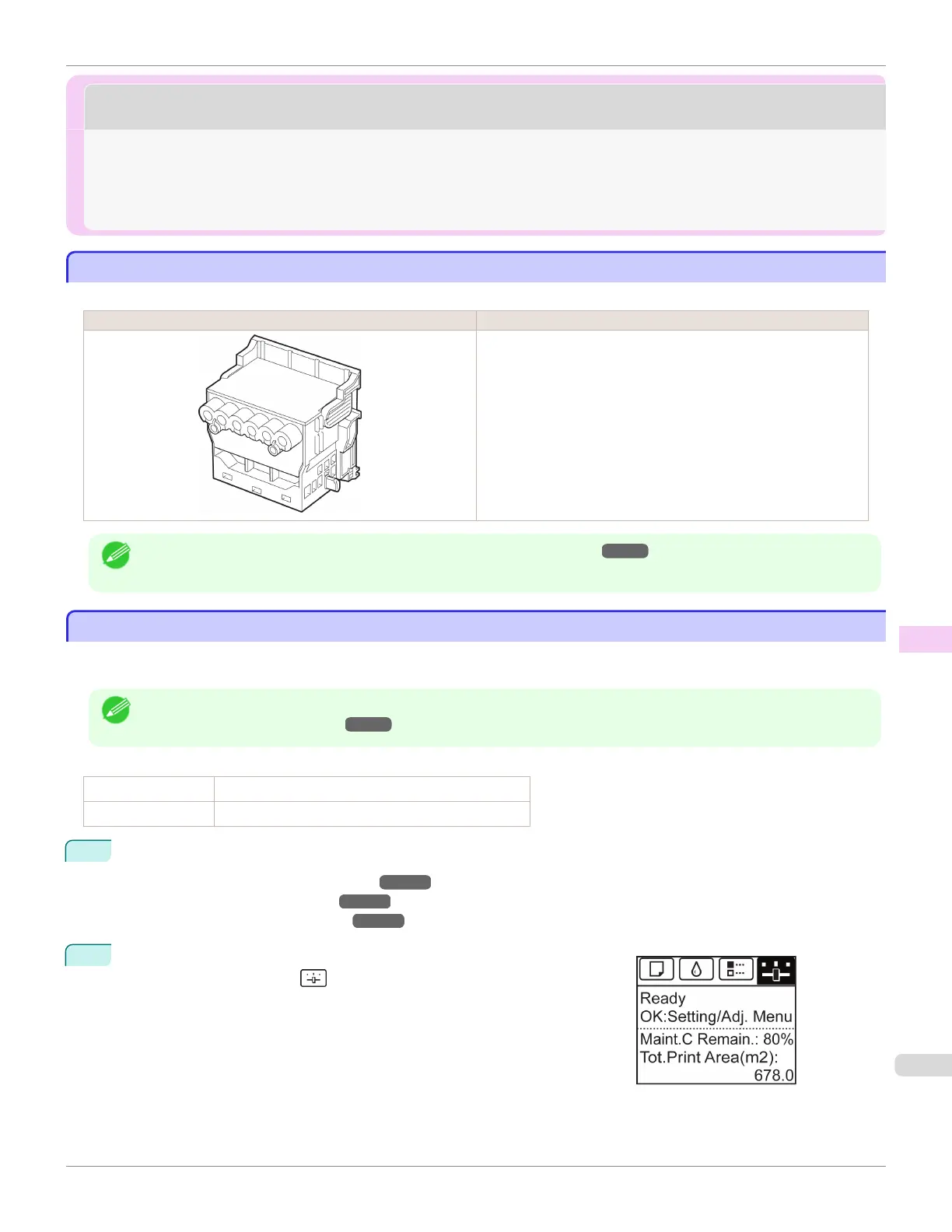

Printheads
Printheads
Printhead .................................................................................................................................................................................... 549
Checking for Nozzle Clogging ...........................................................................................................................................549
Cleaning the Printhead .........................................................................................................................................................550
Replacing the Printhead ...................................................................................................................................................... 551
Printhead
Printhead
When purchasing, check the Model number.
Shape Model number
PF-04
Note
• For instructions on replacing the Printhead, see "Replacing the Printhead." ➔ P.551
Checking for Nozzle Clogging
Checking for Nozzle Clogging
If printing is faint or affected by banding in different colors, make sure the Printhead nozzles are clear by printing a test
pattern to check the nozzles.
Note
• Nozzles are periodically checked to ensure they are clear. Configure the settings on the Control Panel menu in Nozzle
Check. (See "Menu Settings.") ➔P.456
Paper to Prepare
When Using Rolls An unused roll at least 254.0 mm (10.00 in) wide
When Using Sheets One sheet of unused paper of at least A4/Letter size
1 Load paper.
• Attaching the Roll Holder to Rolls ➔ P.370
• Loading Rolls in the Printer ➔ P.373
• Loading Sheets in the Printer ➔ P.392
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab (
).
iPF680 Printhead
User's Guide
Maintenance and Consumables Printheads
549

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
