Canon imagePROGRAF iPF680 User Manual

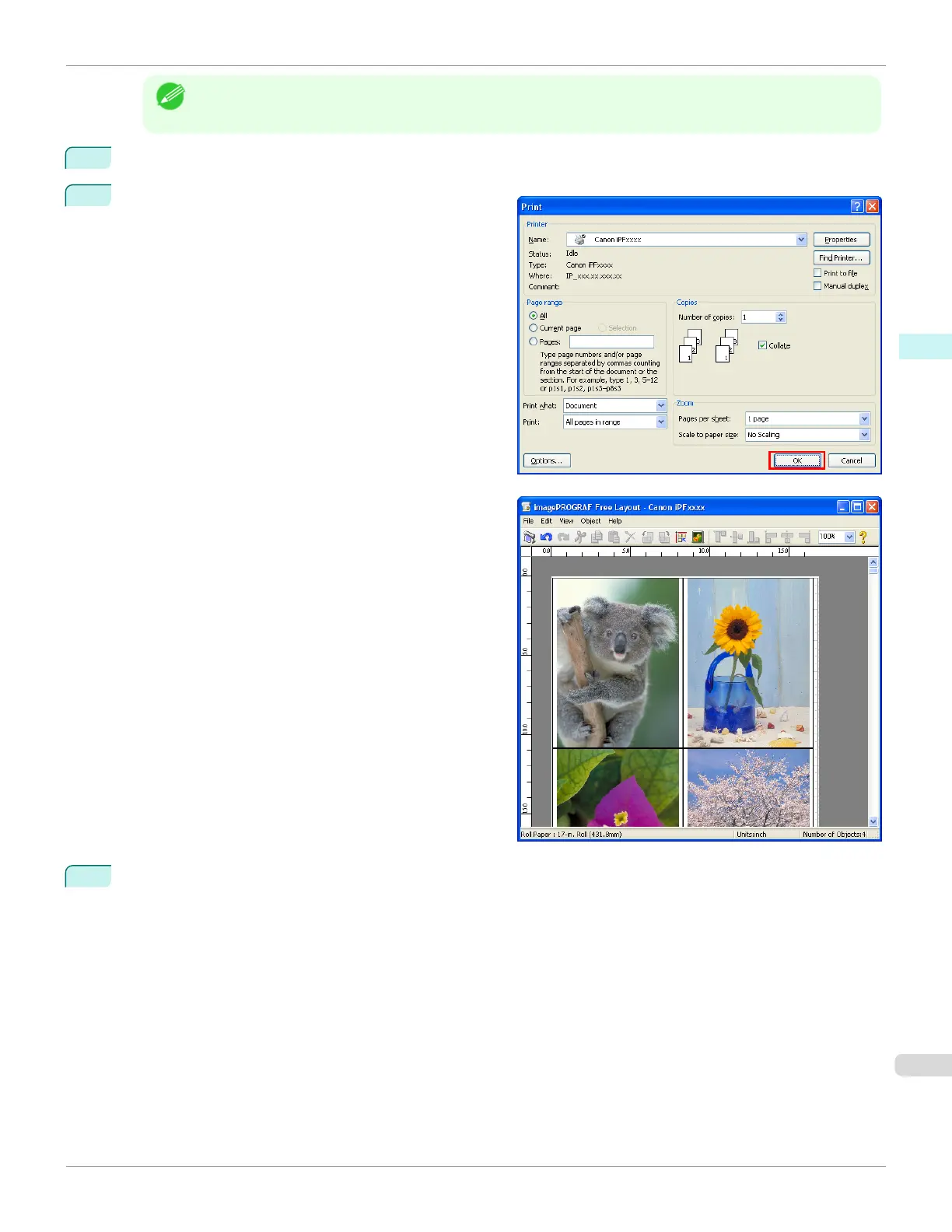

Note
• Your printer is depicted in the lower-left area of this screen.
• When you select Free Layout, all other setting items will be disabled.
5 Click the OK button to save the settings.
6
In the Print dialog box, select the pages to print and
the number of copies, and click the OK button.
Free Layout starts, laying out the document created
with application software in the layout area as an ob-
ject.
7 Leaving Free Layout running, open other files with other application software and repeat the above steps.
iPF680 Laying out a Document Created with Multiple Application Programs on One Page
User's Guide
Windows Software Free Layout
213

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
