d. Replacing consumable parts during transportation
During [MOVE PRINTER], if a message to replace consumable parts appear, check the consumable parts counter from service mode and replace the necessary
consumable parts that is over the threshold value of counter in the following table.
See "Service mode" about how to check the counter.
The consumable parts to be replaced and counter to be reset depends on the [LEVEL].

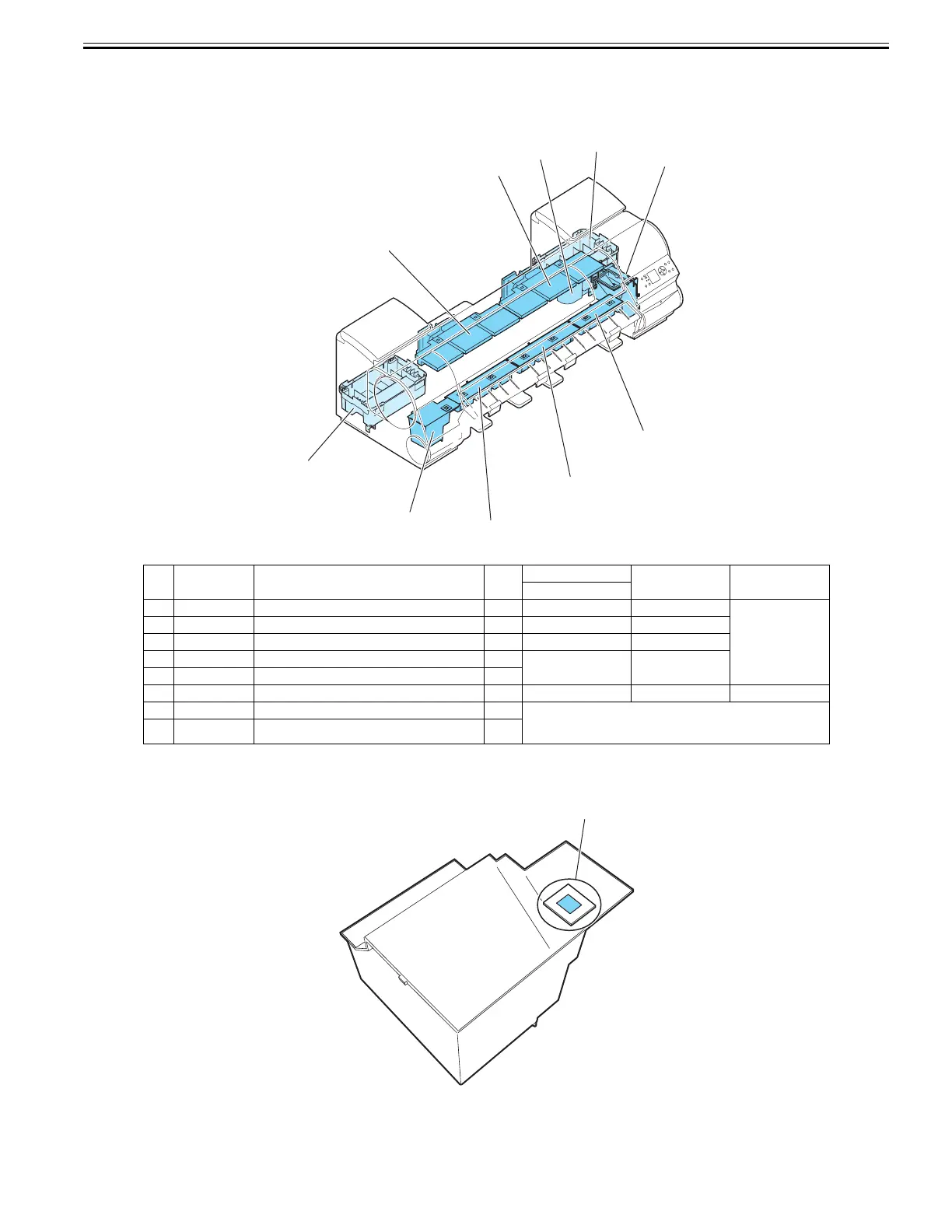

F-3-17
When replacing consumable parts, check for leaking waste ink. When replacing each consumable part, be careful of leaking waste ink especially from the marked
area [A] and avoid tilting the part when removing.
F-3-18
No Part number Name Q'ty
Service Mode
Threshold value of
counter (Unit: ml)
Level x (Main menu)
PARTS xx
[1] QL2-2110 WASTE INK ABSORBER UNIT 1 Wia-1 581 1, 2, 3
[2] QL2-2108 WASTE INK ABSORBER UNIT (L) 2 Wia-3/Wia-4 143
[3] QL2-1650 WASTE INK ABSORBER UNIT (S) 1 Wia-5 47
[4] QM3-3069 SUCTION FAN UNIT 1 Wia-6 152
[5] QL2-1663 DUCT 1
[6] QM3-7025 FAN UNIT 2 Mi-1 241 2, 3
[7] QM3-1033 INK SUPPLY MOUNT UNIT (L) 1 If there is waste ink, perform waste ink disposal or parts replacement.
And confirm that the ink leakage has not caused to the surrounding
area of ink supply mount unit.
[8] QM3-1034 INK SUPPLY MOUNT UNIT (R) 1
[1] WASTE INK ABSORBER UNIT
[2]
[1]
[7]
[5]
[6]
[6]
[4]
[8]
[2]
[3]
[A]
