Canon imagePROGRAF iPF8400 Service Manual

Chapter 4
4-12
k) Upper rear cover
Removing the upper rear cover
1) To remove the upper rear cover, remove left/right circle covers (L), left/right circle covers (S), left/right side covers, upper left/right covers, left/right rear covers
and left/right ink tank cover units and then open the left/right ink tanks.

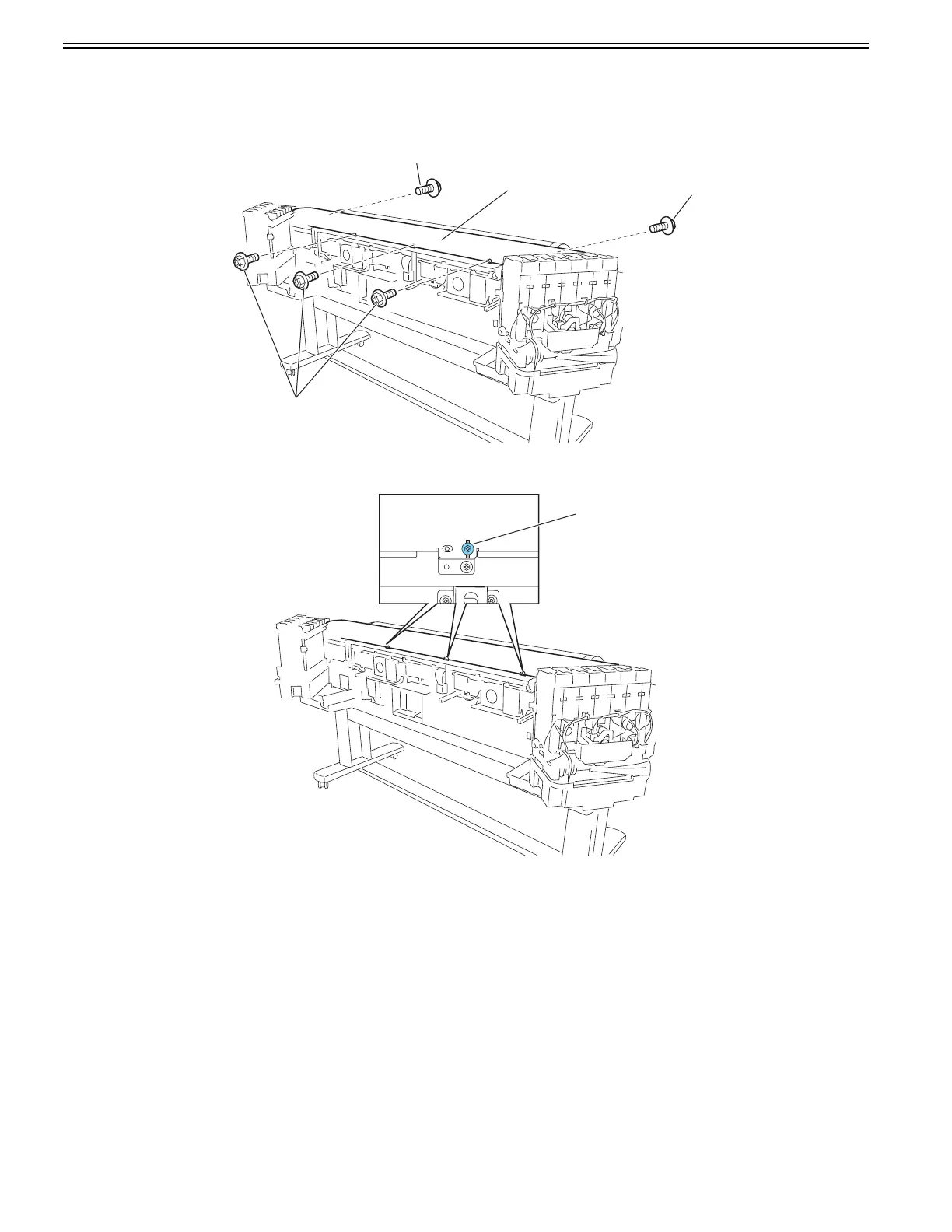

2) Remove two screws [1] on front side of the printer and three screws [2] on the rear side, and then remove upper rear cover [3].
F-4-20
Note on installing the upper rear cover
1) Fit three rear-panel screws [1] into screw holes on the right side.
F-4-21
[1]
[1]
[2]
[3]
[1]

Canon imagePROGRAF iPF8400 Specifications

General

Internal storage capacity	250 GB
