Chapter 4
4-16

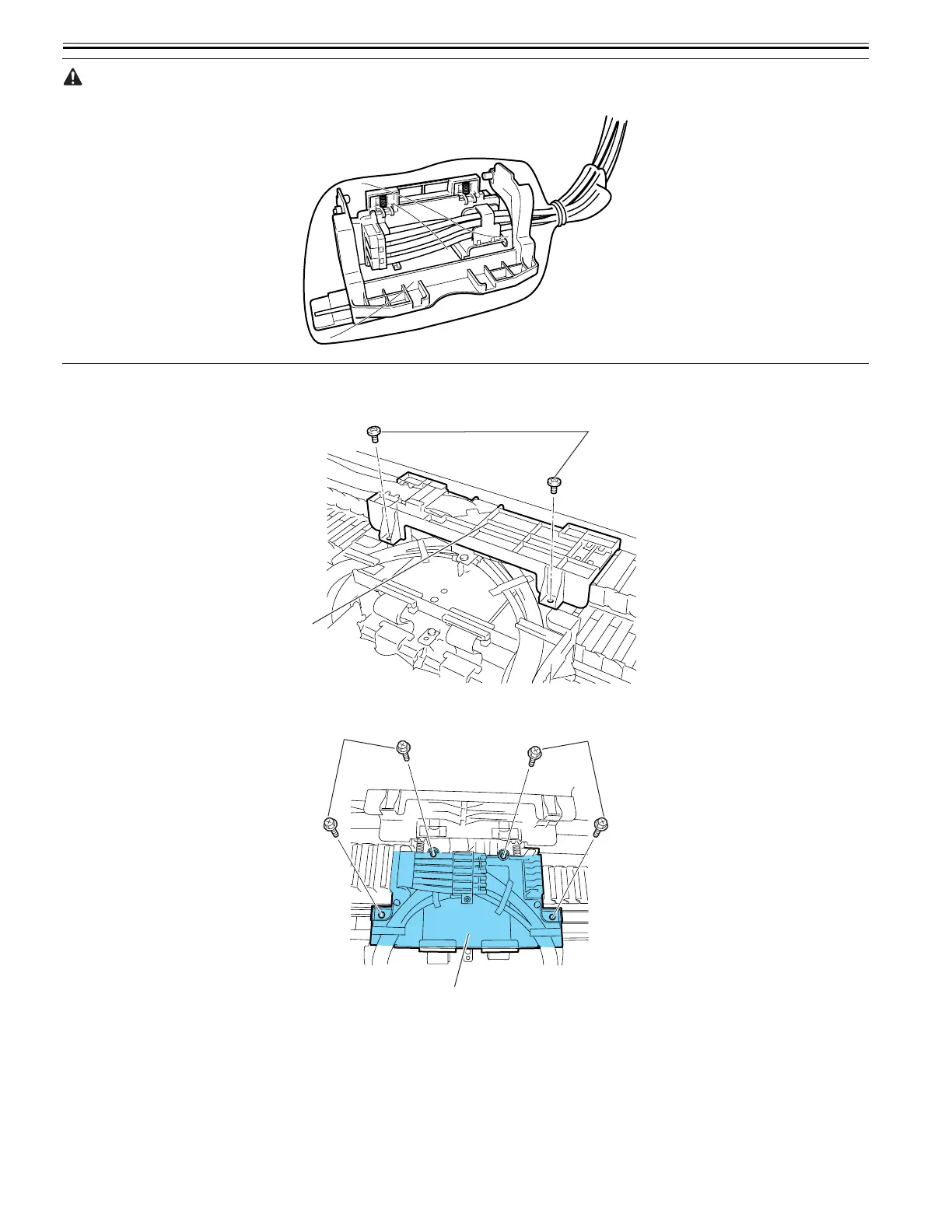

Cover the joints in the ink tube, as with a PVC bag, to keep inks from splashing from them.
F-4-27
5) Remove two screws [1] and ink tube cover [2].
F-4-28
6) Remove four screws [1] and open carriage relay PCB cover [2].
F-4-29
7) Disconnect five flexible cables from the carriage relay PCB.
[1]
[2]
[1]
[2]
[1]
