Canon imagePROGRAF iPF8400 Service Manual

Chapter 4
4-17

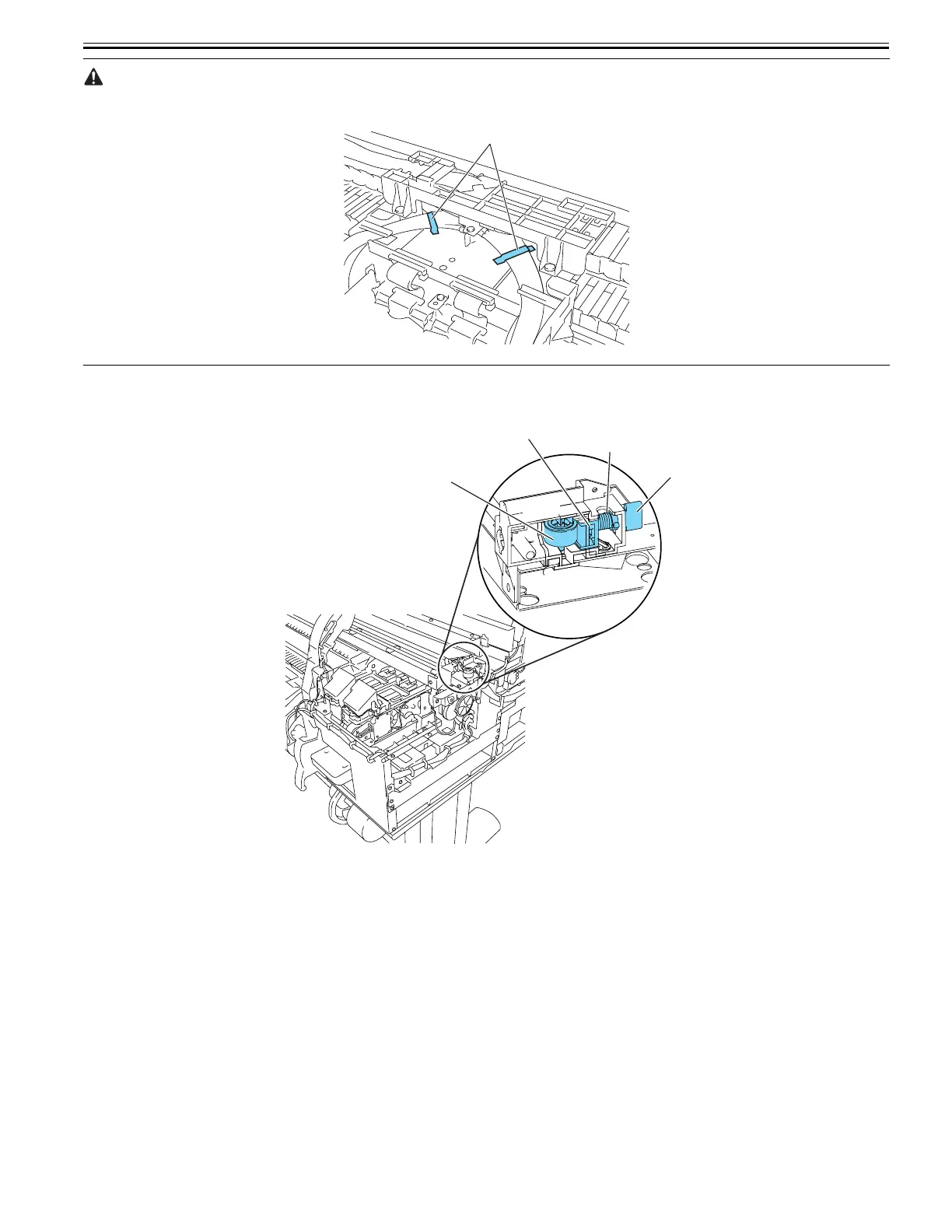

Never peel off tape [1] that fixes the ink tube when detaching the joints of the ink tube on the upper part of the carriage or when removing the joint base from the
carriage.
F-4-30
8) Twist off belt fixer knob [1] to loosen the belt, and remove spring [2], guide [3] and pulley [4].
F-4-31
9) Release carriage belt from the pulley of the carriage motor.
[1]
[2]
[4]
[3]
[1]
