t) Left back cover
Removing the left back cover
1) When removing the left back cover[1], open the top cover, and then remove the roll feed unit, left circle cover, tank cover, left cover, lower rear cover, lower
rear left cover, and left rear cover.
2) Remove the two screws[2], and then remove the left back cover[1].

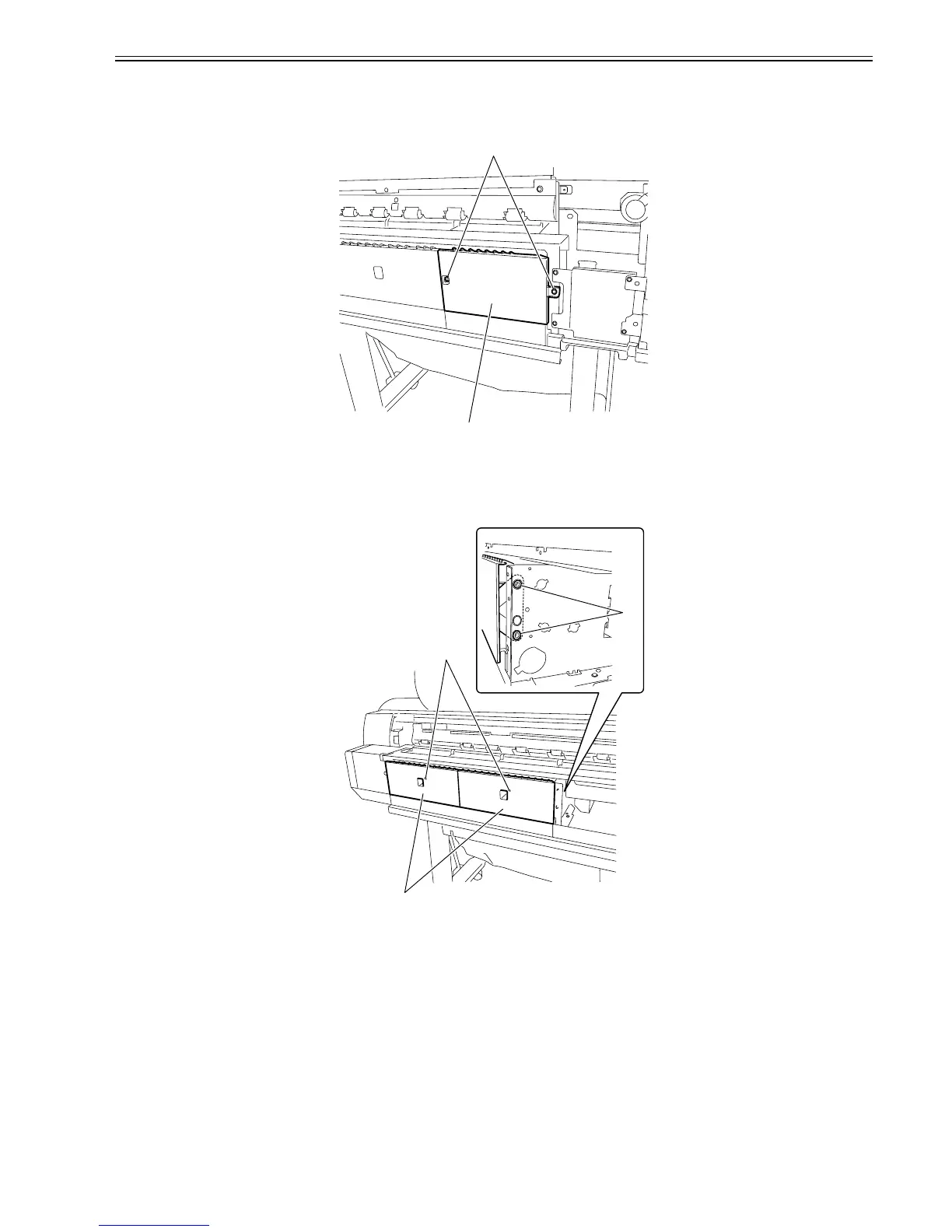

F-4-28
u) Back cover
Removing the back cover
1) When removing the back cover[1], open the top cover, and then remove the roll feed unit, left circle cover, tank cover, left cover, lower rear cover, lower rear
left cover, left rear cover, and left back cover.
2) Remove the two screws[2] and two hooks[3], and then remove the back cover[1].
F-4-29
[2]
[1]
[2]
[3]
[1]
