Canon iPF605 - Purge Unit

Chapter 4
4-34
4.3.10 Purge Unit
0013-2180
a) Removing the purge unit

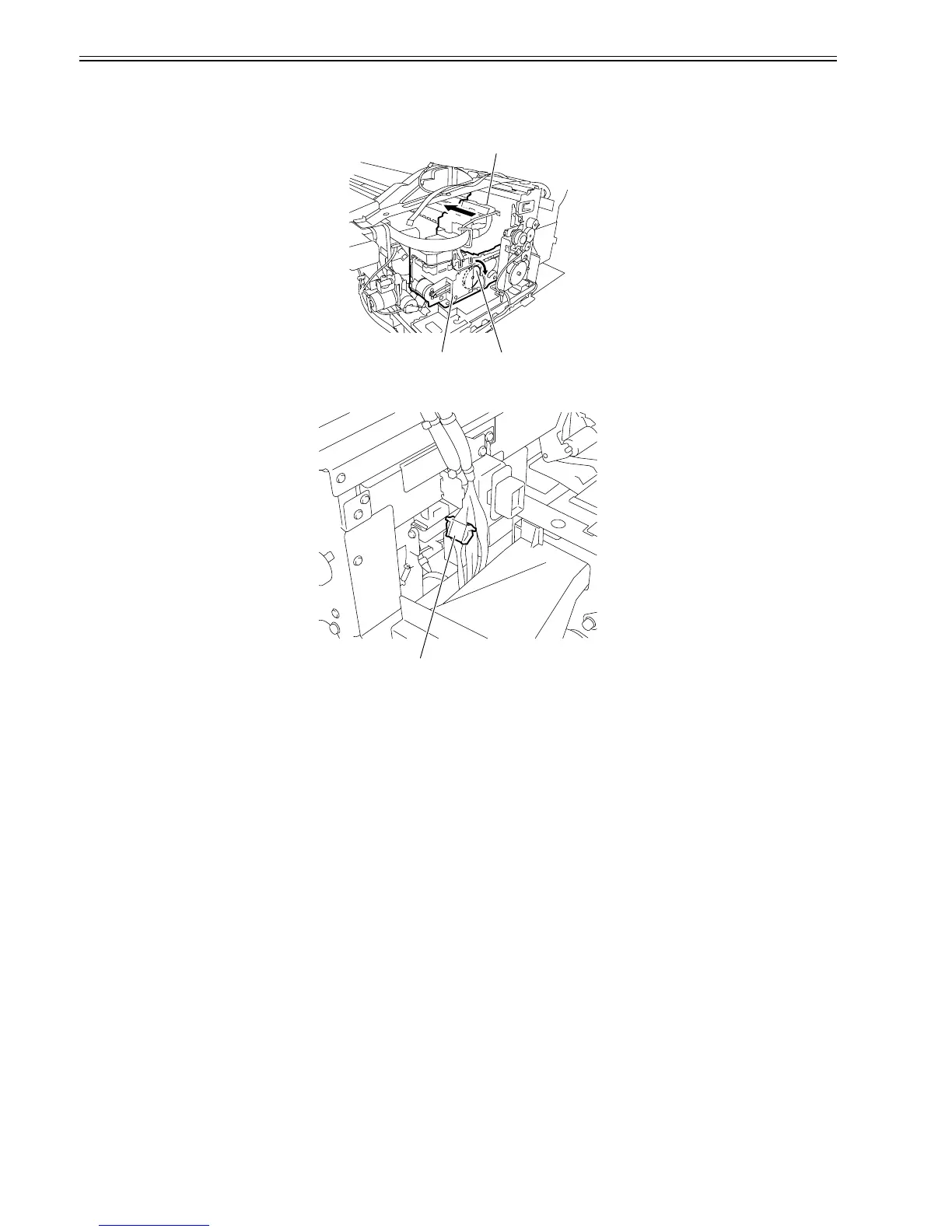

1) Turn the gear[1] of the purge unit[3] in the direction of the arrow to unlock and uncap the carriage. Next, move the carriage[2] onto the platen.
F-4-74
2) Remove the connector[1] from the rear of the unit to free the harness from the harness guide.
F-4-75
[2]
[3] [1]
[1]
