Canon iPF605 - Roll Feed Unit Cover (Inside); Carriage

Chapter 1
1-16

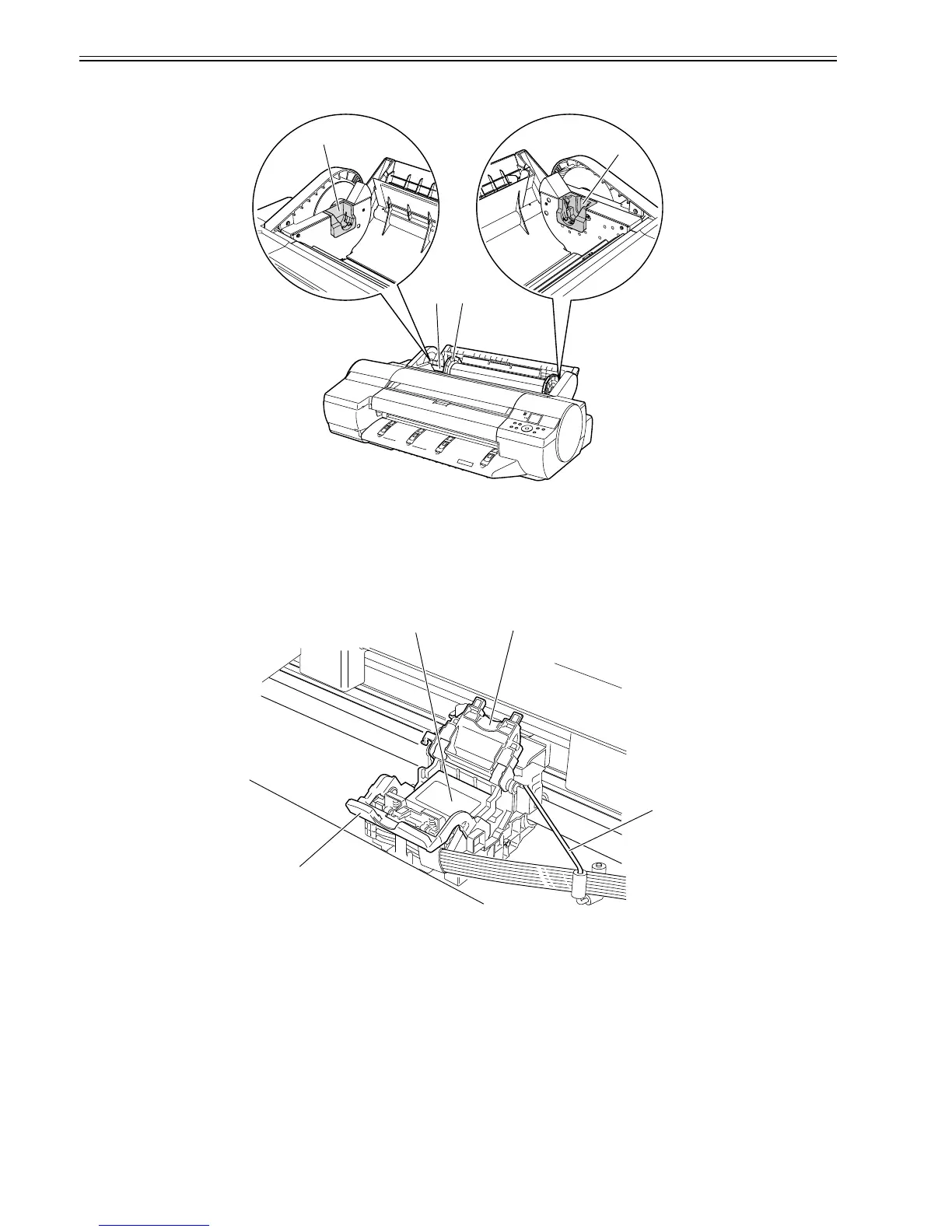

1.5.5 Roll Feed Unit Cover (Inside)
0016-8154
F-1-21
[1] Roller holder
Set roll media on this holder.
[2] Holder stopper
Use to secure roll media to the roller holder.
[3] Roller holder slot
Set the roller holder in this guide groove.
1.5.6 Carriage
0012-6338
F-1-22
[1] Carriage
[2] Printhead lock cover
This cover is used to lock the printhead. Open this cover when installing the printhead.
[3] Printhead
The printhead incorporated nozzles. It is an important part for printing.
[4] Printhead lock lever
This lever is used to lock the printhead. Open this lever when installing the printhead.
[5] Ink tube guide
This stay is used as an ink tube guide.
[3]
[3]
[2] [1]
[4]
[2] [1]
[3]
