Canon iPF605 - Roll Feed Unit

Chapter 4
4-31
4.3.9 Roll Feed Unit
0013-4377

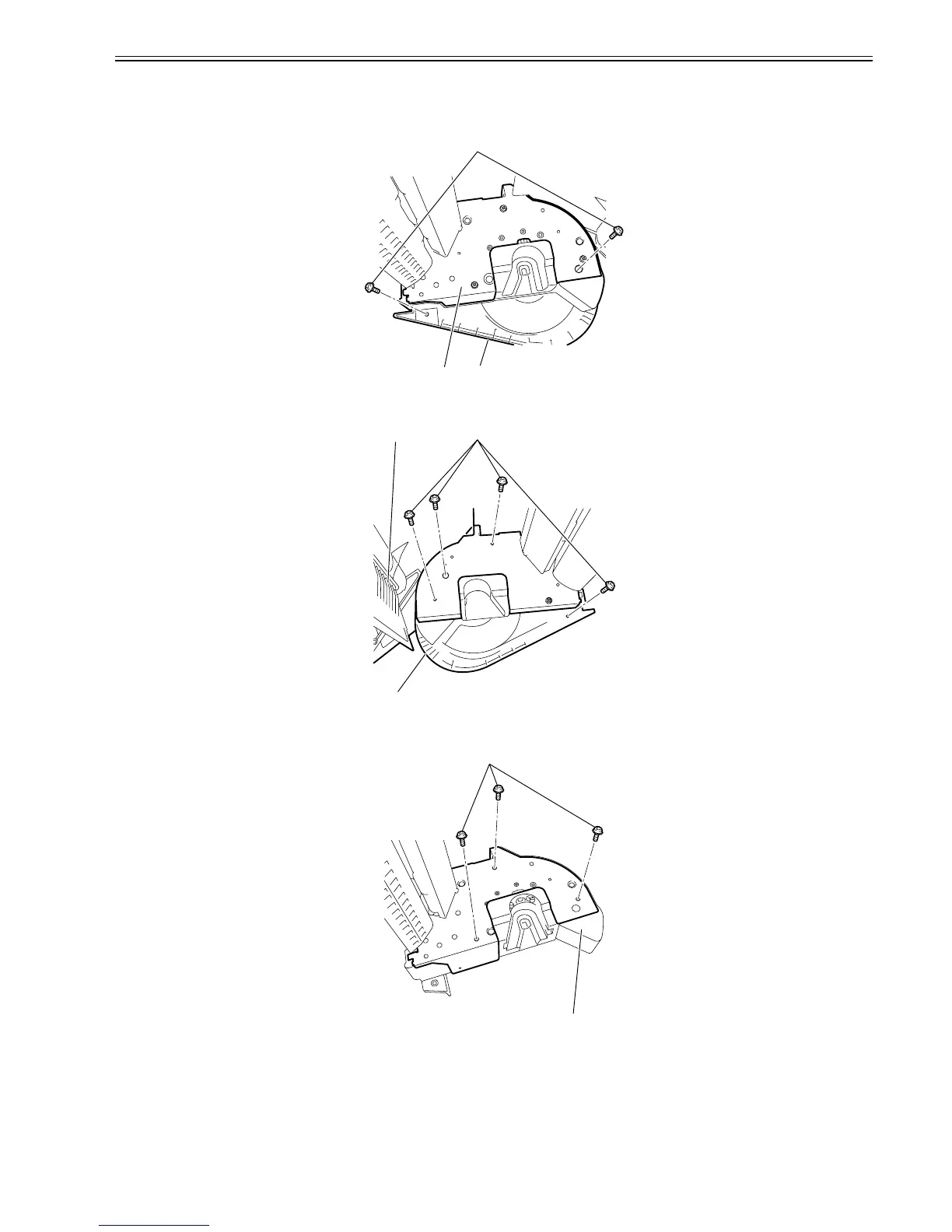

a) Removing the roll motor
1) When removing the roll motor, remove the roll feed unit[2] from the main body, and then remove the right cover[3] by removing the two screws[1].
F-4-66
2) Remove the four screws[1], and then remove the left cover[2] and paper tray[3].
F-4-67
3) Remove the three screws[1], and then remove the right inner cover[2].
F-4-68
[1]
[2]
[3]
[1]
[2]
[3]
[1]
[2]
