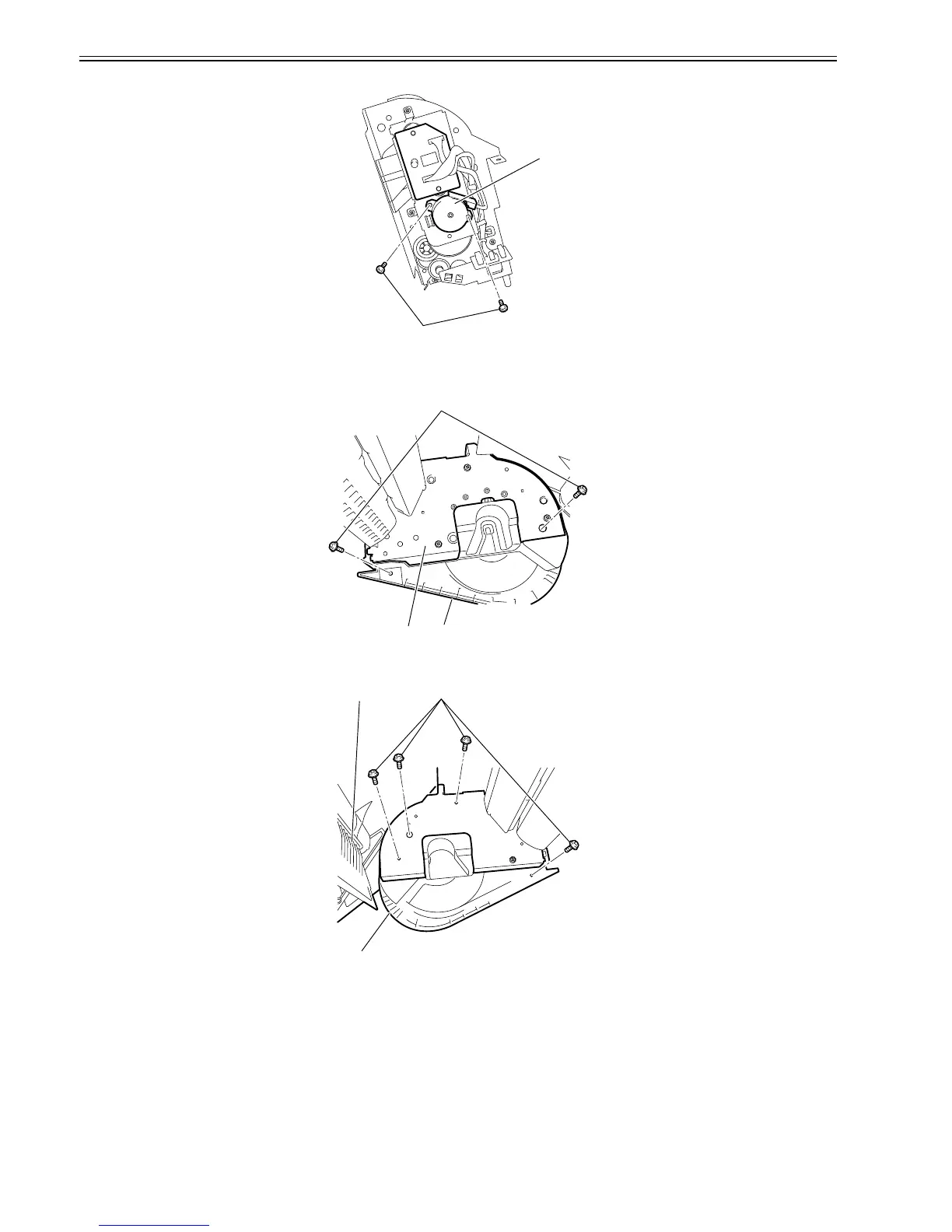

4) Remove the two screws[1], and then remove the roll motor[2].
F-4-69
b) Removing the roll feed unit
1) When removing the roll motor, remove the roll feed unit[2] from the main body, and then remove the right cover[3] by removing the two screws[1].
F-4-70
2) Remove the four screws[1], and then remove the left cover[2] and paper tray[3].
F-4-71
