Chapter 4
4-18

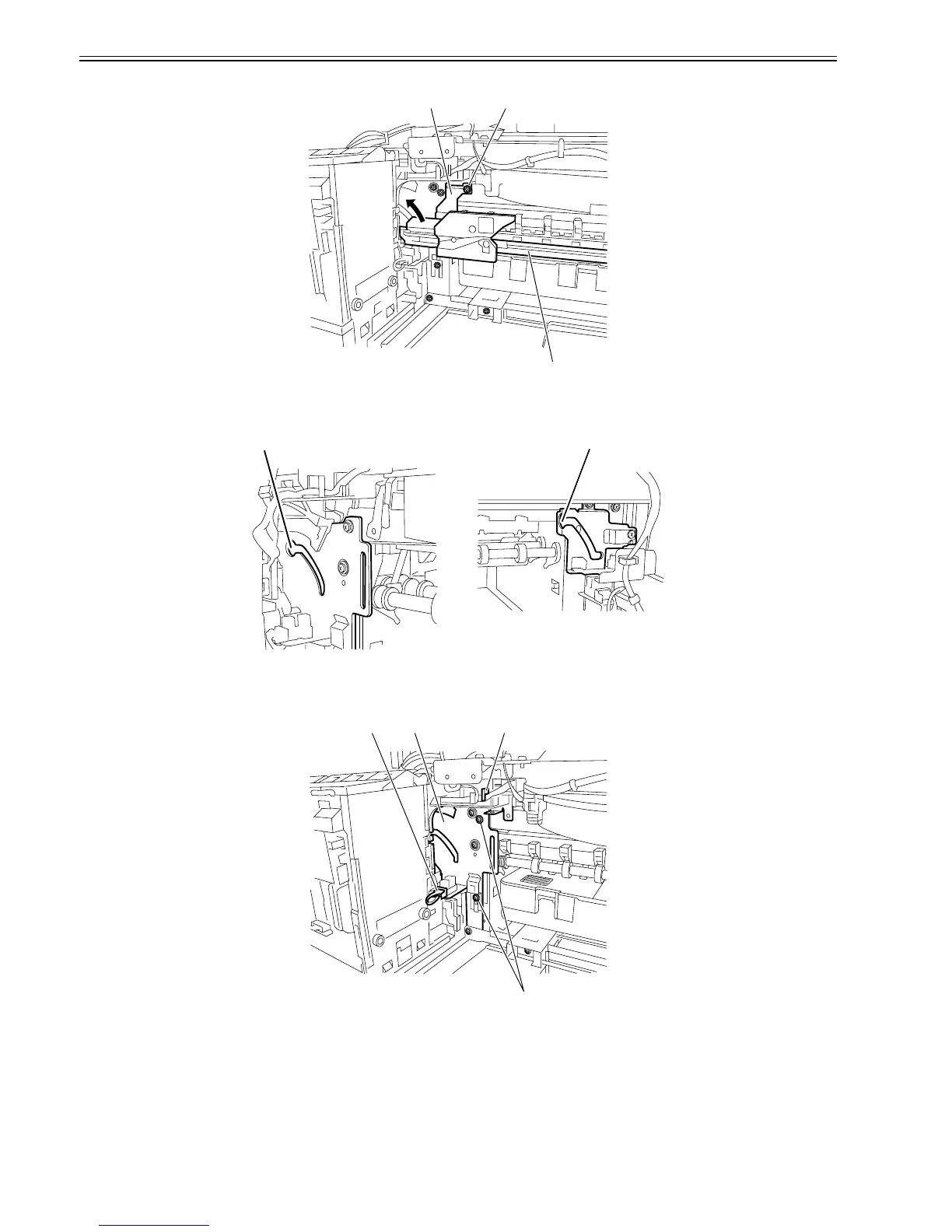

3) Remove the screw[1] and clamp[2] and slide cutter unit[3] to left obliquely upward out of position.
F-4-36
b) Points to note on Disassembly an Reassembly of Cutter unit
1) When disassembling or reassembling the cutter unit, align the cutter unit roller with the grooves[1] in the cutter lifter unit and cutter drive unit.
F-4-37
c) Removing the cutter mounting plate
1) Remove the cutter unit.
2) Remove the two screws[1] and connector[2] and free the harness from harness guide[3] to remove the cutter mounting plate[4].
F-4-38
[1][2]
[3]
[1]
[1]
[1]
[2] [3][4]
