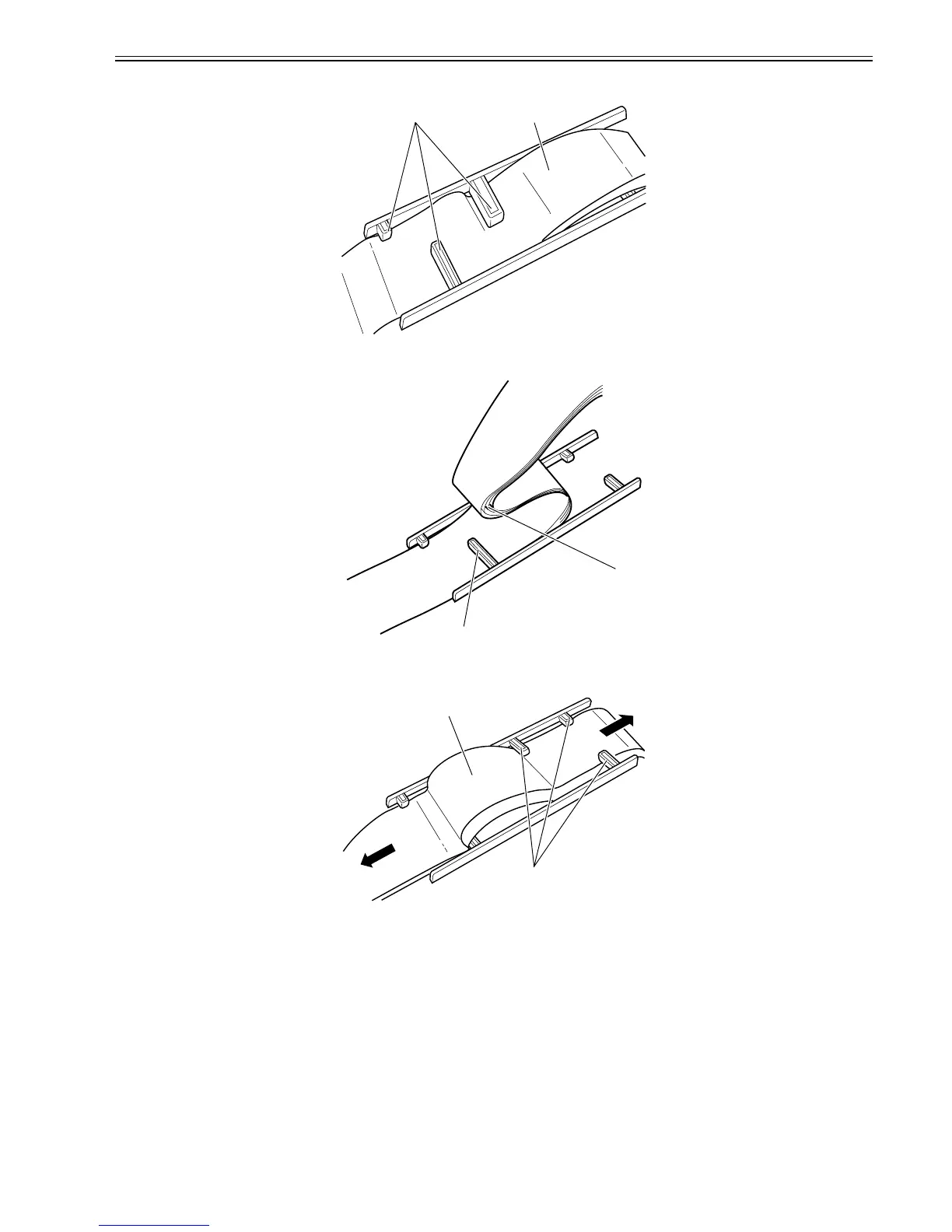

c) Note on attaching the flexible cable
1) Insert the flexible cable[2] through the three claws[1] in the flexible cable retainer.
F-4-49
2) Lightly fold the flexible cable in its marked area[1] and pass it through claws[2].
F-4-50
3) Insert folded flexible cable [1] through three claws [2].
4) Pull flexible cable [1] lightly from both sides to remove slacks in it.
F-4-51
[1] [2]
[2]
[1]
[2]
[1]
