Canon iPF605 - Page 176

Chapter 4
4-38

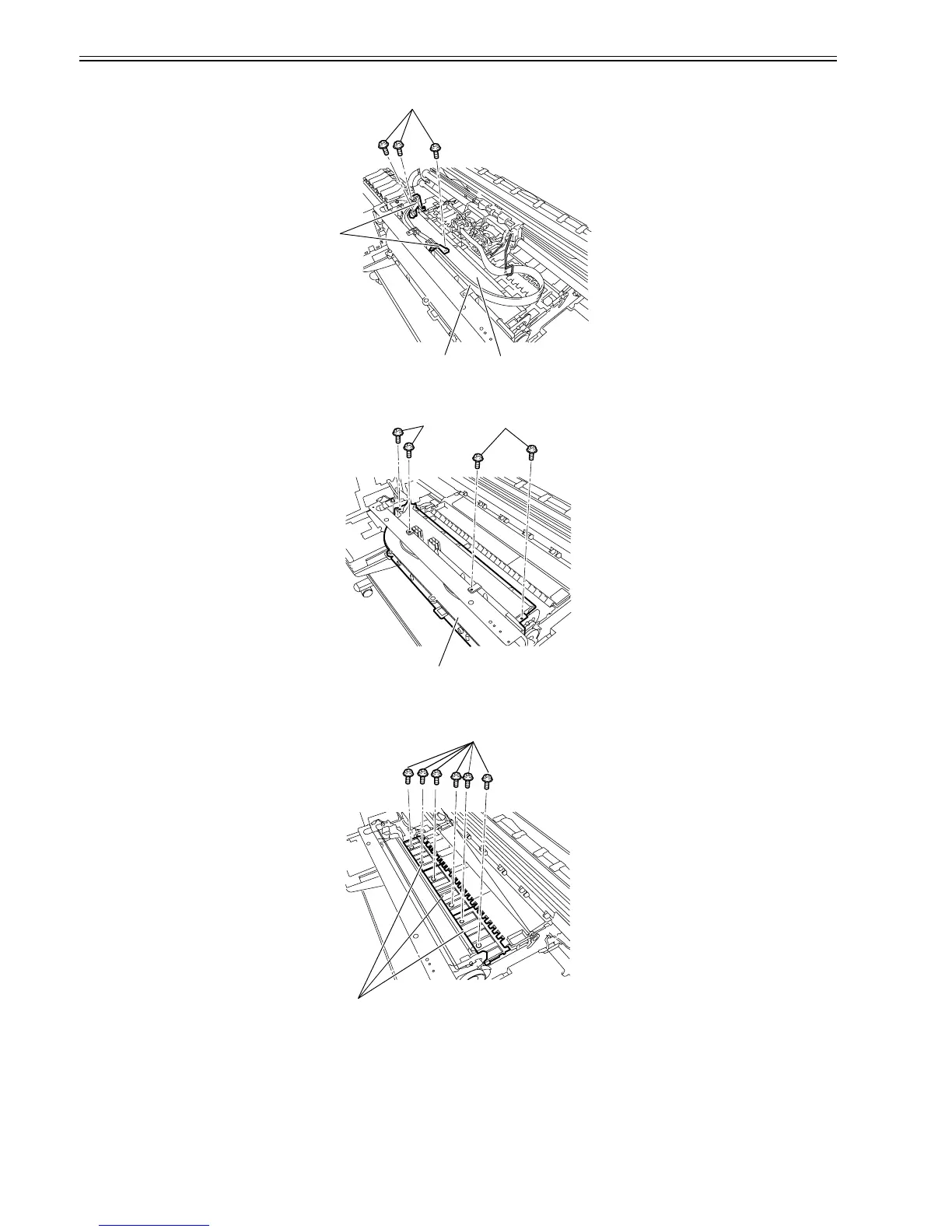

2) Remove the three screws[2], and then remove the two tube guide[1]. Remove the ink tube[3] from the guide of the front duct[4].
F-4-83
3) Remove the front duct[2] by removing the four screws[1].
F-4-84
4) Remove the platen(front)[2] by removing the six screws[1].
F-4-85
[1]
[3] [4]
[2]
[1]
[2]
[1]
[1]
[2]
