Refer to DISASSEMBLY/REASSEMBLY > Point to Note on Disassembly and Reassembly > Cutter

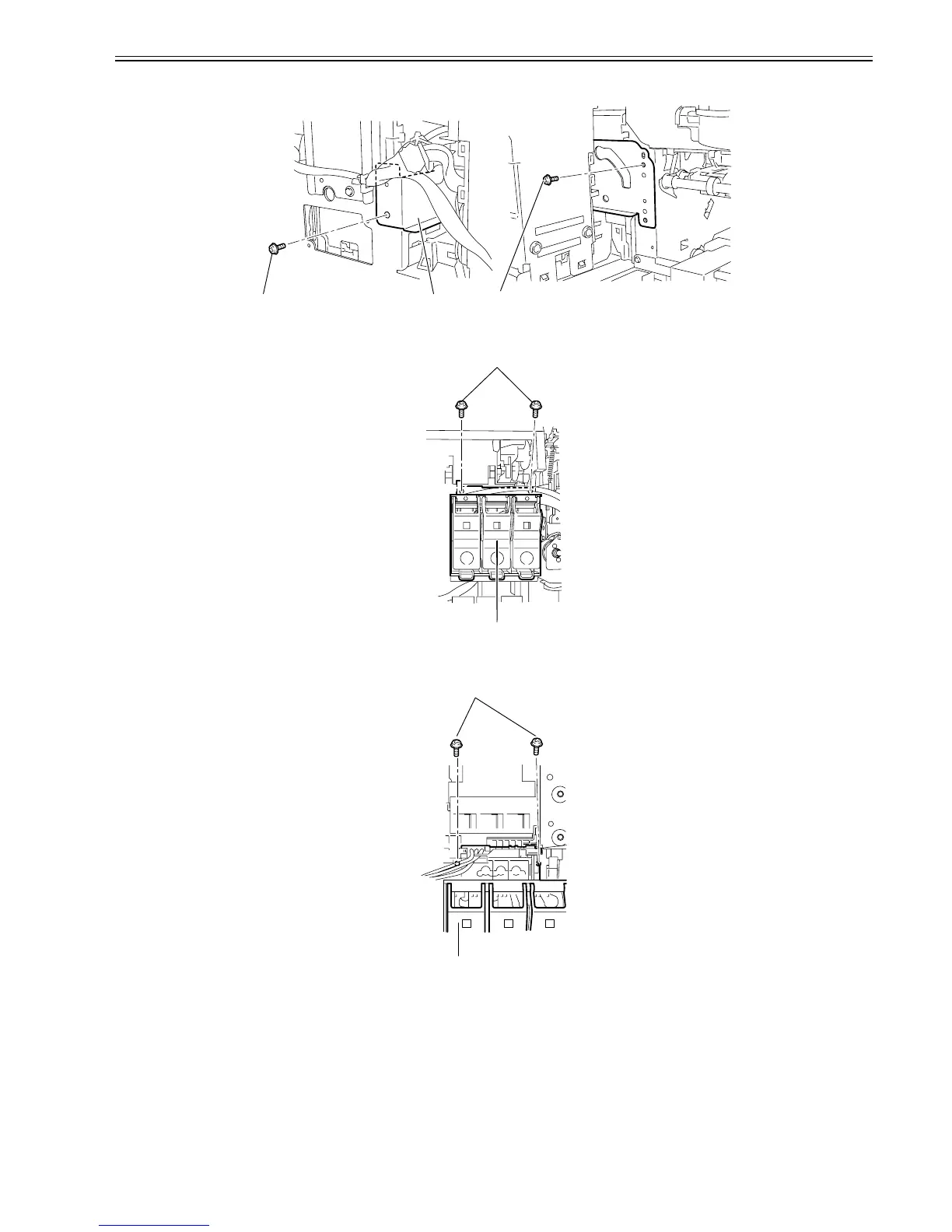

7) Remove the two screws[1], and then remove the support plate[2].
F-4-92
8) Remove the two screws[1], and then remove the ink tank unit R[2].
F-4-93
9) Remove the two screws[1], and then remove the ink tank unit F[2].
F-4-94
b) Removing the valve motor unit
