CHAPTER 4 IMAGE FORMATION SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
4-50

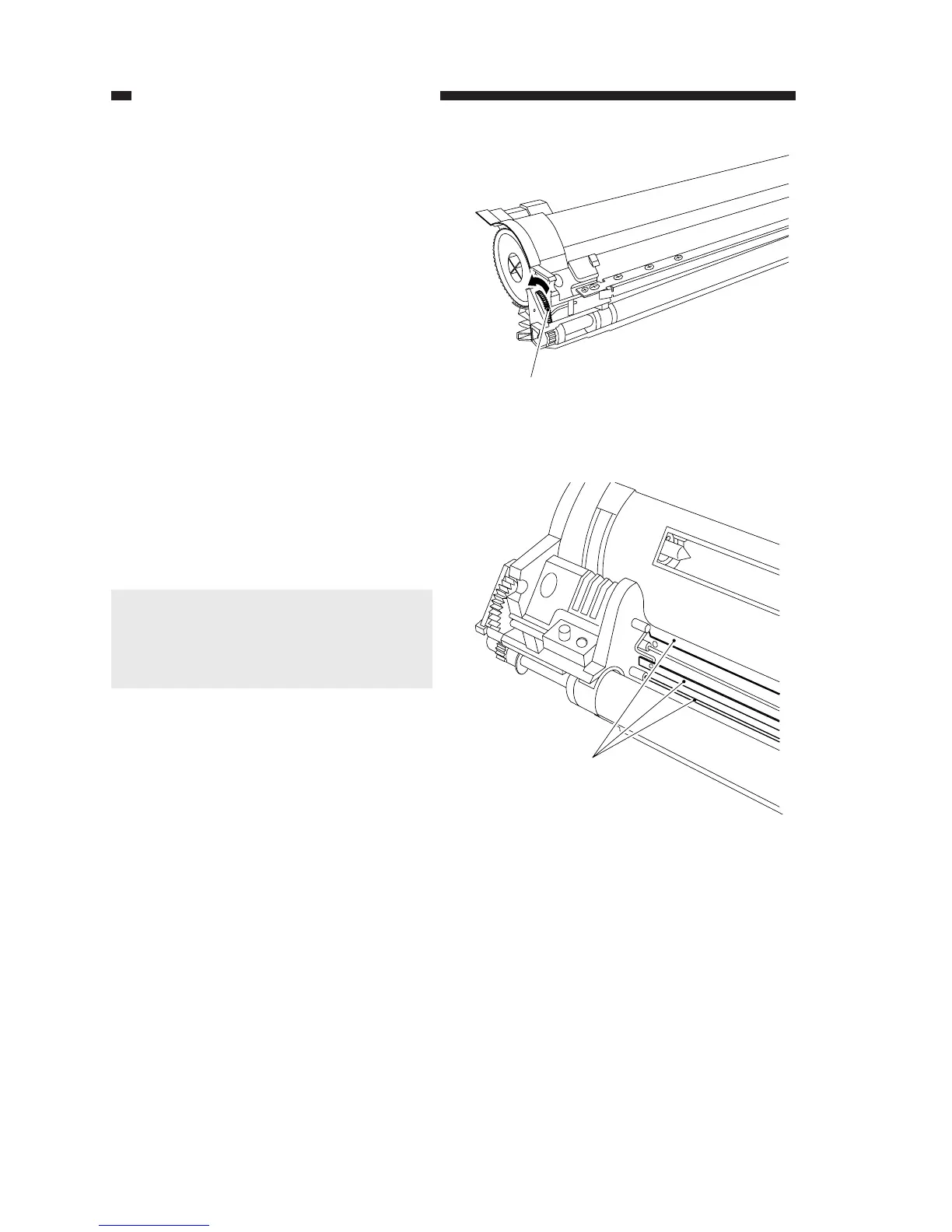

6. Points to Note When Installing the
Drive Gear
a. Assemble the gears so that all three stir-
ring rods [1] face the same direction.
Figure 4-332
Caution:
If any of the stirring rods does not face
the same direction, the interference
among the rods can prevent stirring op-
eration.
[1]
3) Turn the drive gear [4] slowly in the direc-
tion shown in the figure to give the devel-
oping cylinder a full turn.
Figure 4-331
[4]
To Next Page
