CHAPTER 9 INSTALLATION
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
9-4

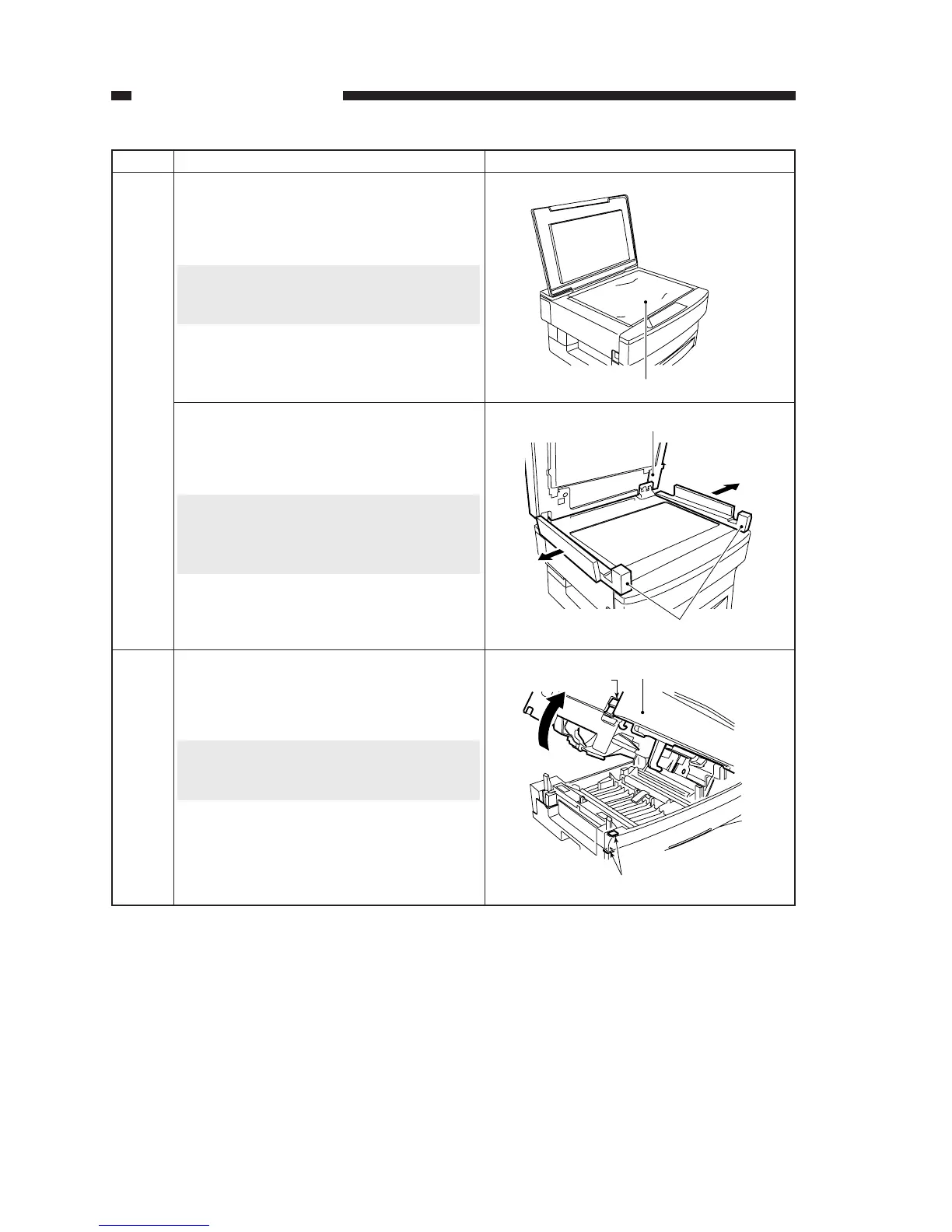

Work Checks and remarksStep
Open the copyboard cover, and remove the
protective sheet; then, close the cover.
(Copyboard type only)
6
Protective sheet
Open the ADF, and remove the protective
members; then, close the ADF. (ADF type
only)
Protective members
ADF
Pull the open/close lever found on the left of
the machine to open the machine's top unit;
then, remove the two protective members.
7
Machine's top unit
Protective members
Open/close lever
Caution:
If the protective sheet is not fond on the ma-
chine, go to the next step.
Caution:
If the protective member is not found on the
machine, go to the next step.
Caution:
You will need this protective member when
relocating the machine. Be sure to store it
away appropriately.
To Next Page
