4. Outputs from the DC Control PCB (2/2)

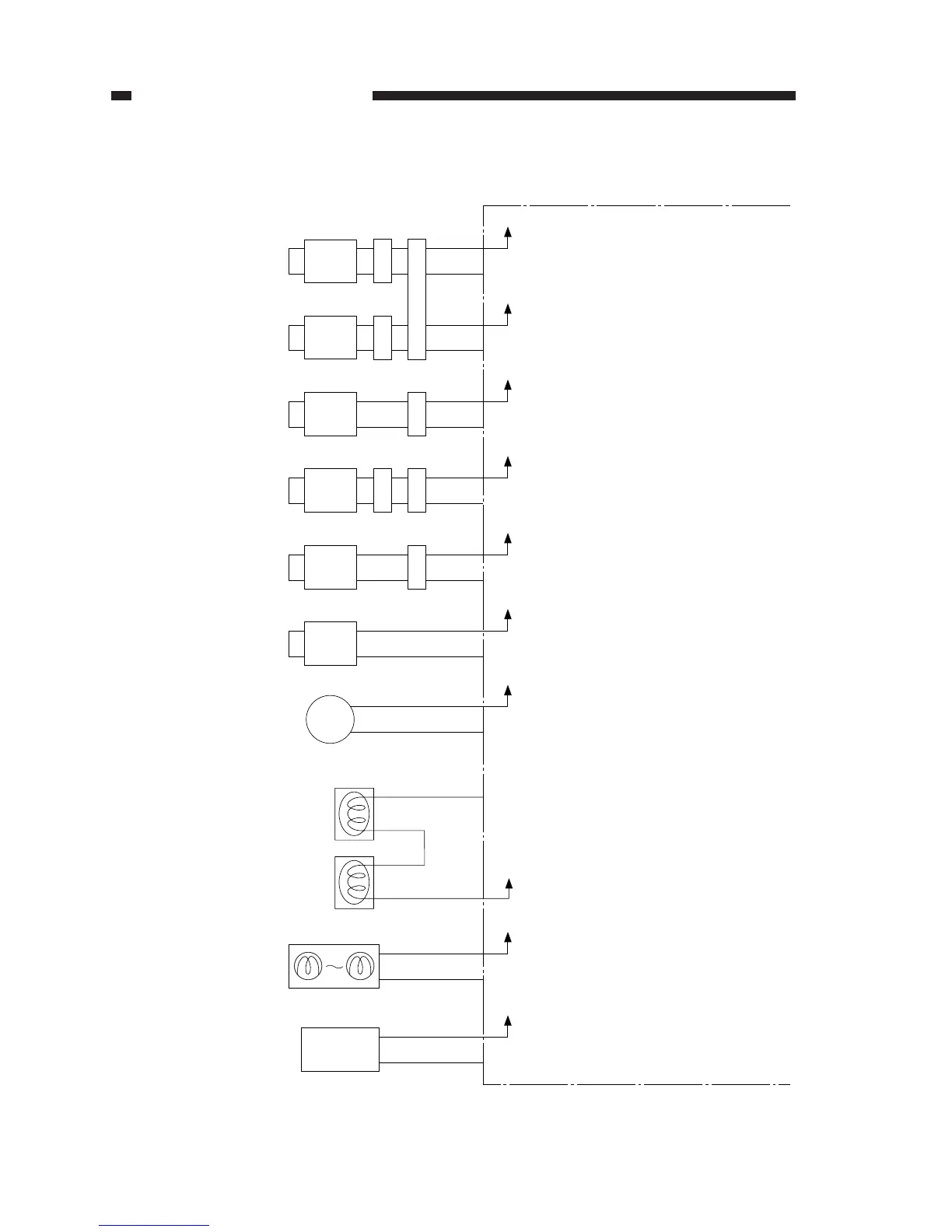

Figure 2-108
J109-8
-7
J132-2
-1
J130-1
-2
J121-2
-1
J119-2
-1
J109-4
-3
J109-6
-5
J109-2
-1
Pickup clutch solenoid
Registration clutch solenoid
Multifeeder pickup solenoid
Lens solenoid
SL4
SL3
SL2
SL1
+24V
+24V
+24V
+24V
PUSLD*
RGSLD*
LNSLD*
MFSLD*
When ‘0’, the pickup clutch solenoid
turns on.
When ‘0’, the registration clutch
solenoid turns on.
When ‘0’, the lens solenoid turns
on.
When ‘0’, the multifeeder pickup
solenoid turns on.
J106-1
-2
Side blanking lamp (front)
Side blanking lamp (rear)
SB_LP*
+24V
When ‘0’, the blanking lamp turns on.
DC controller PCB
J51
J51
J54
J52
J53
J55
Cassette pickup solenoid
SL5
+24V
CPUSD*
When ‘0’, the cassette pickup solenoid
turns on.
J58
J122-2
-1
Primary charging roller
cleaning solenoid
SL6
+24V
PCSLD*
When ‘0’, the primary charging roller
cleaning solenoid turns on.
Pre-exposure lamp
+24V
PEXP*
When ‘0’, the pre-exposure lamp
turns on.
Scanner cooling fan
+24V
FM1D*
When ‘0’, the scanner cooling fan
turns on.
FM1
Total copy counter
+24V
TCNTD*
When ‘0’, the total copy counter
turns on.
CNT1
LA2
