CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-22

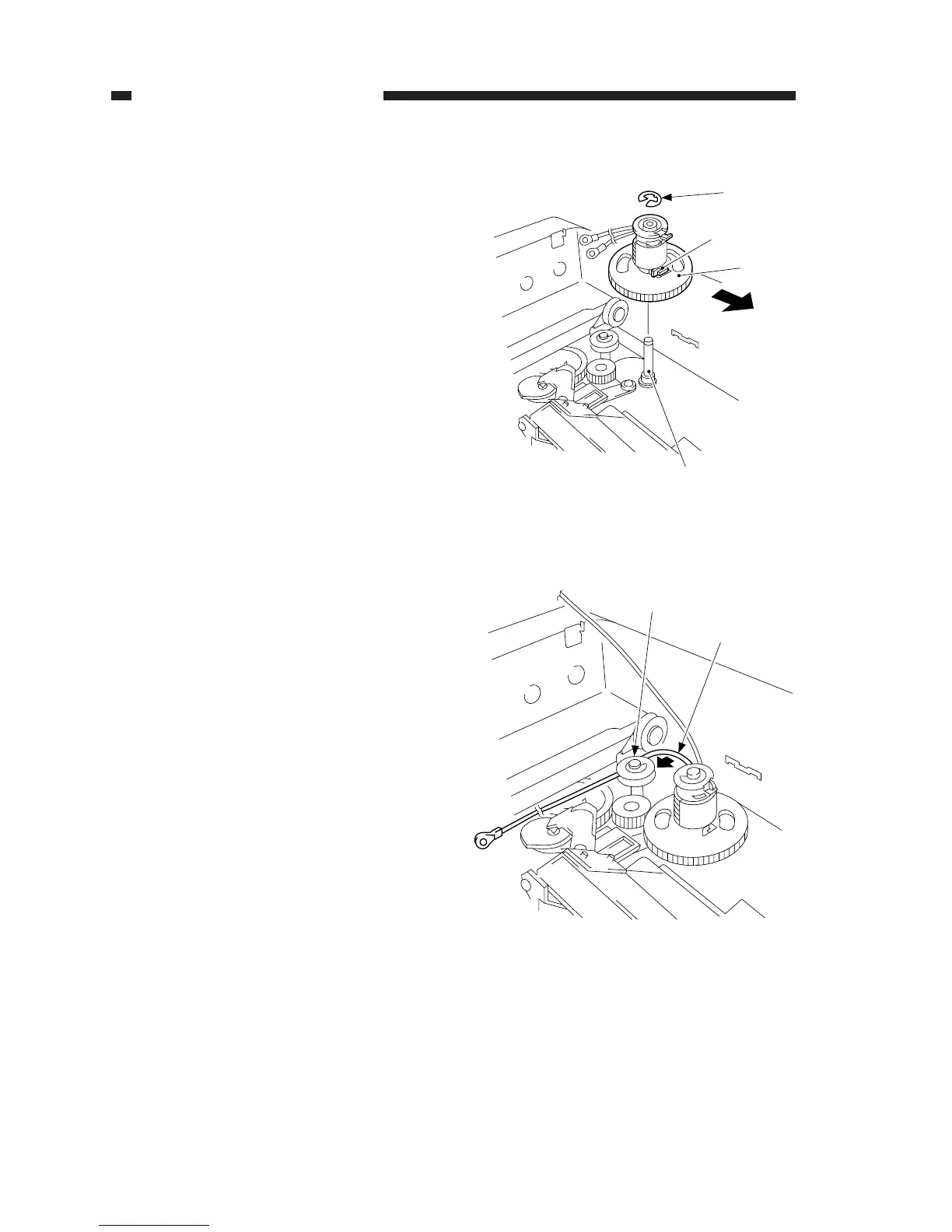

Figure 3-314
Figure 3-315
[5]
Hook
(front)
[1]
[4]
[7]
[6]
3) Hook the shorter end [6] on the pulley [7].
2) Put the cable drive pulley [1] into the shaft
[4], and secure it in position with an E-
ring [5].
When putting the cable drive pulley into
the shaft, be sure that the hook is at the
front.
