CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-23

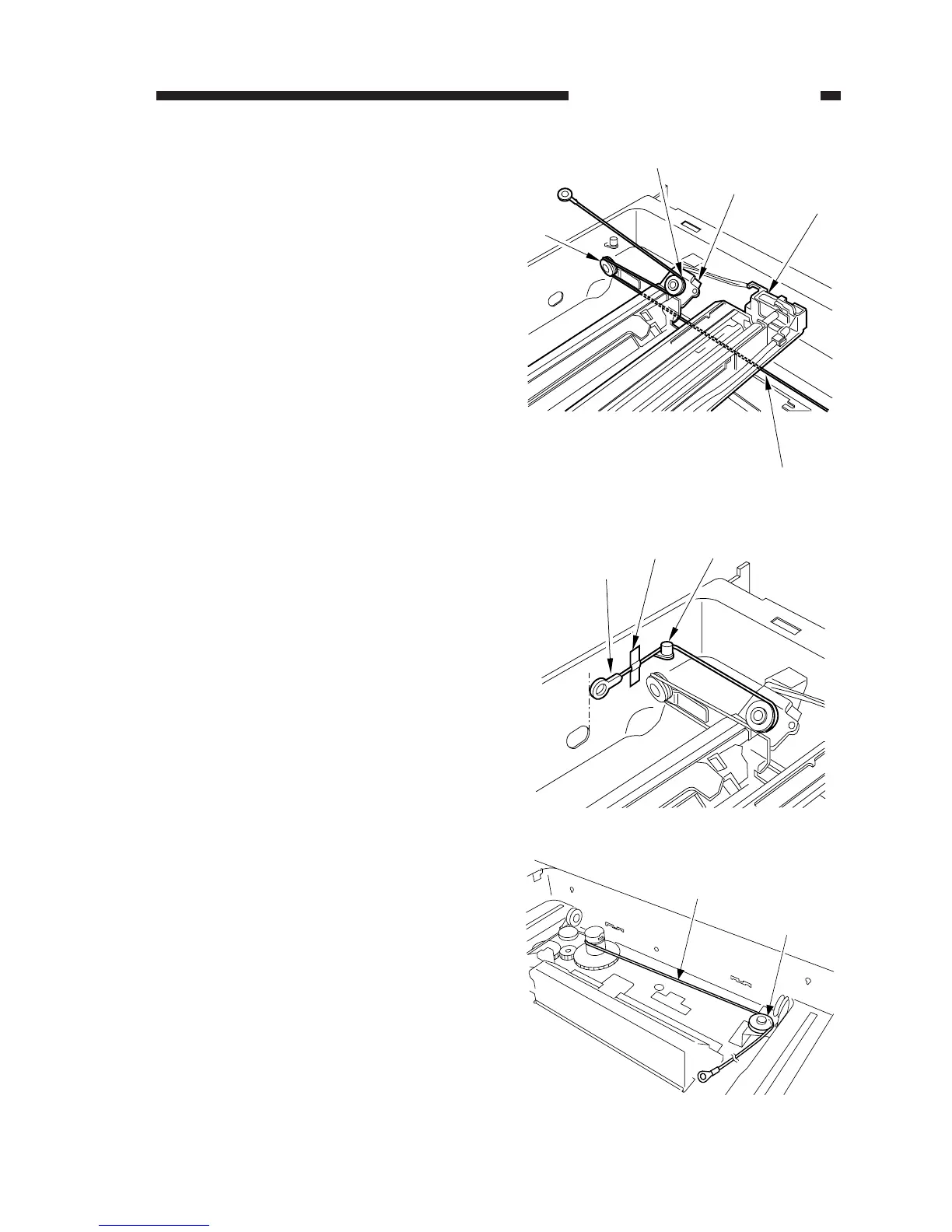

Figure 3-317
Figure 3-316
[10]
[11]
[6]
[8]
[9]
Figure 3-318
[6]
[12]
[13]
[14]
[15]
6) Lead the longer end [14] along the cable
drive pulley, and hook it on the pulley
[15] on the right front side.
5) After fitting the shorter end [6] on the
cable hook [12], secure its end with adhe-
sive tape [13].
Be sure that the secured end of the cable is
found where the hole in the left side plate
and the tip of the cable matches.
4) Lead the shorter end [6] under the No. 1
mirror mount [8] and the No. 2/3 mirror
mount [9]; then, hook it on the left rear
pulley [10] and the pulley [11] of the No.
2/3 mirror mount.
