CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-26

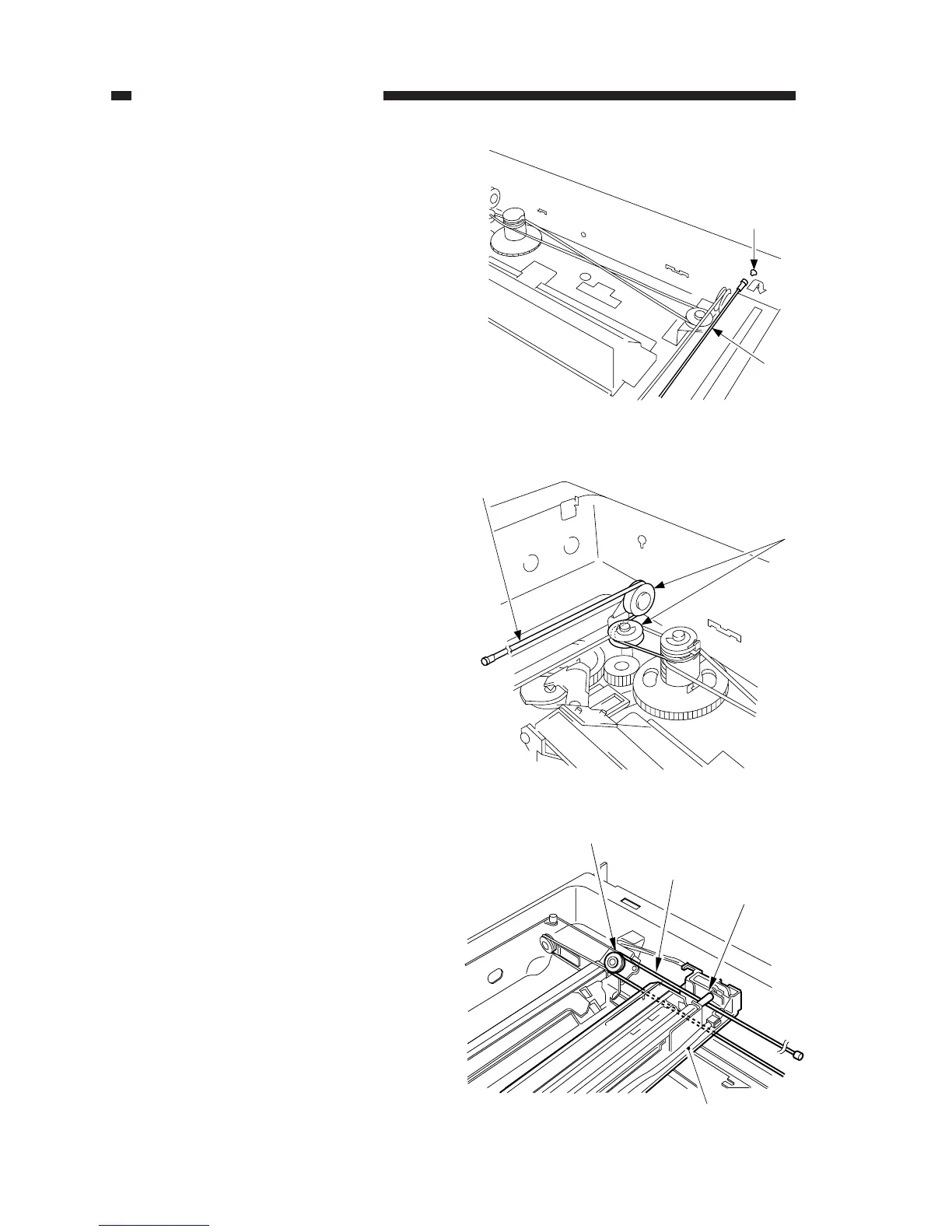

Figure 3-324
Figure 3-326
Figure 3-325
[5]
[10]
[11]
[3]
[7]
[9]
[3]
[12]
6) Lead the shorter end [3] under the No. 1
mirror mount [7], and hook it on the pul-
ley [12] of the No. 2/3 mirror mount as
shown; then, lead it between the No. 1
mirror mount [7] and the scanning lamp
[9].
5) Free the shorter end [3], and hook it on the
pulley [11] on the right rear side.
4) Hook the end of the longer end [5] on the
hole [10] on the right side.
