CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-27

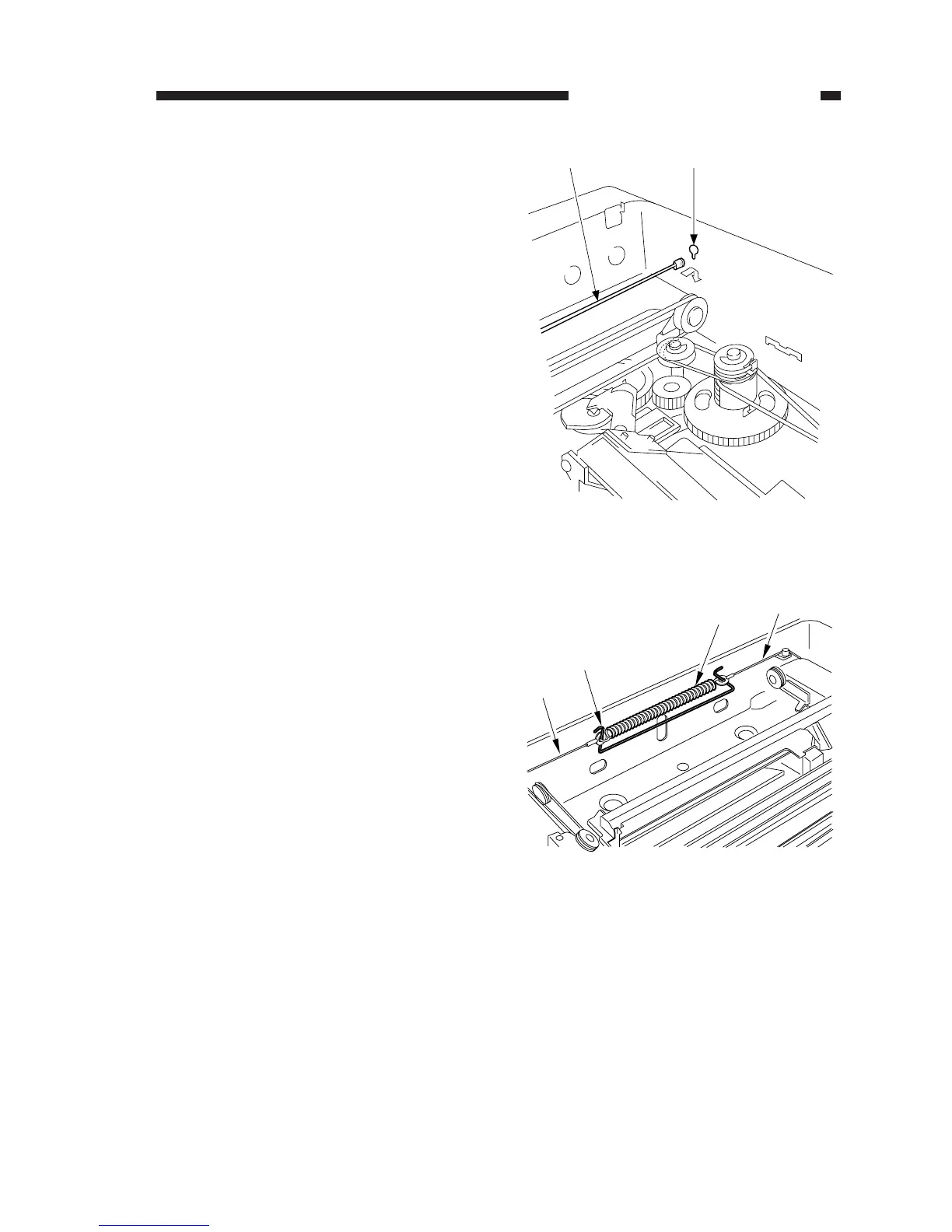

Figure 3-327
Figure 3-328
[3] [13]
[14]
[3]
[15]
[5]
8) Free the shorter end [3] and the longer end
[5] (reversing cable), and connect both
with a spring [14]; then, fit the stopper
[15].
7) Hook the end of the shorter end [3] on the
hole [13] on the right side.
To Next Page
