CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-29

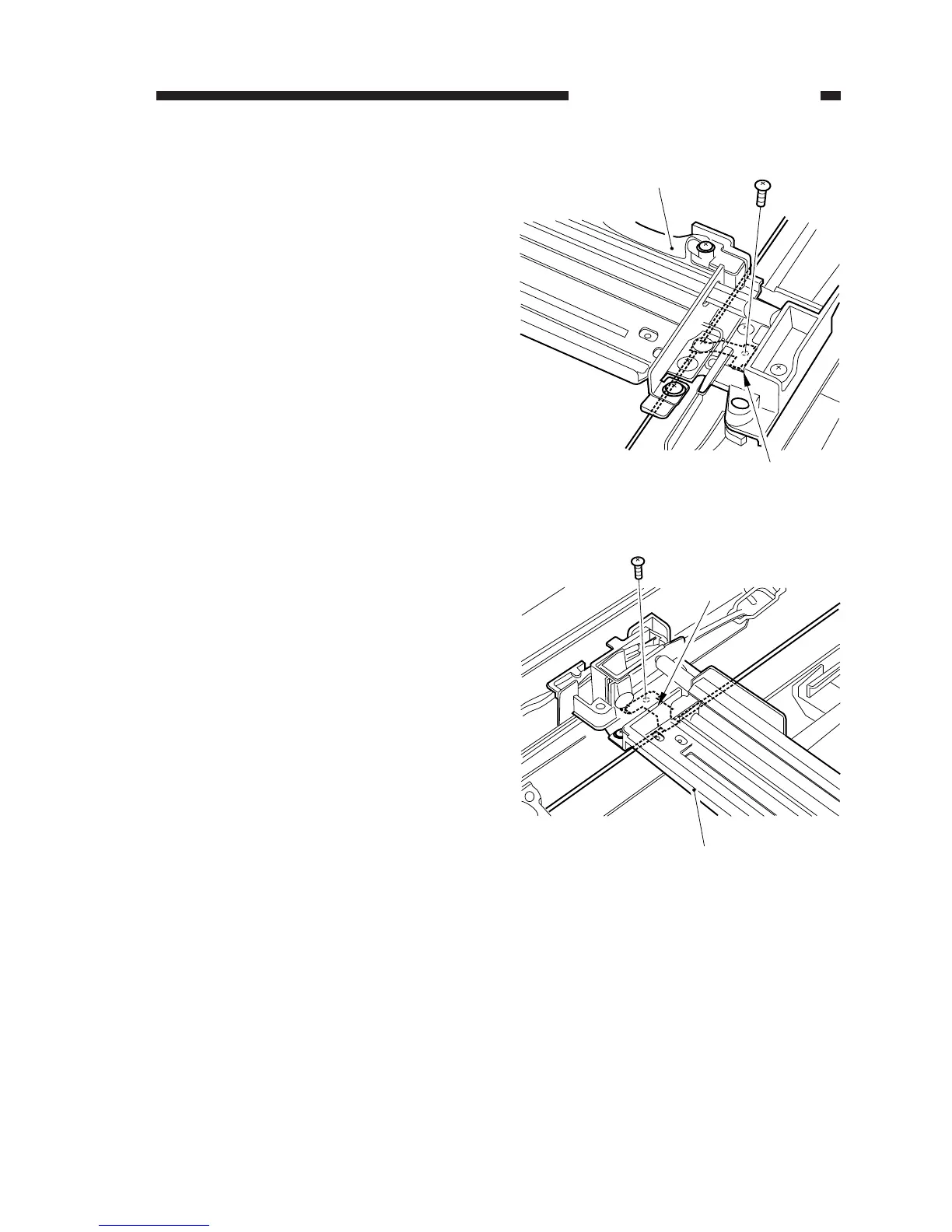

Figure 3-330 (front)
Figure 3-331 (rear)
[1]
[2]
[1]
[2]
d. Positioning the No. 1 Mirror Mount
1) Fix the rear and the front of the No. 1 mir-
ror mount [1] temporarily to the metal fix-
ing [2] of the forwarding cable.
