CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-33

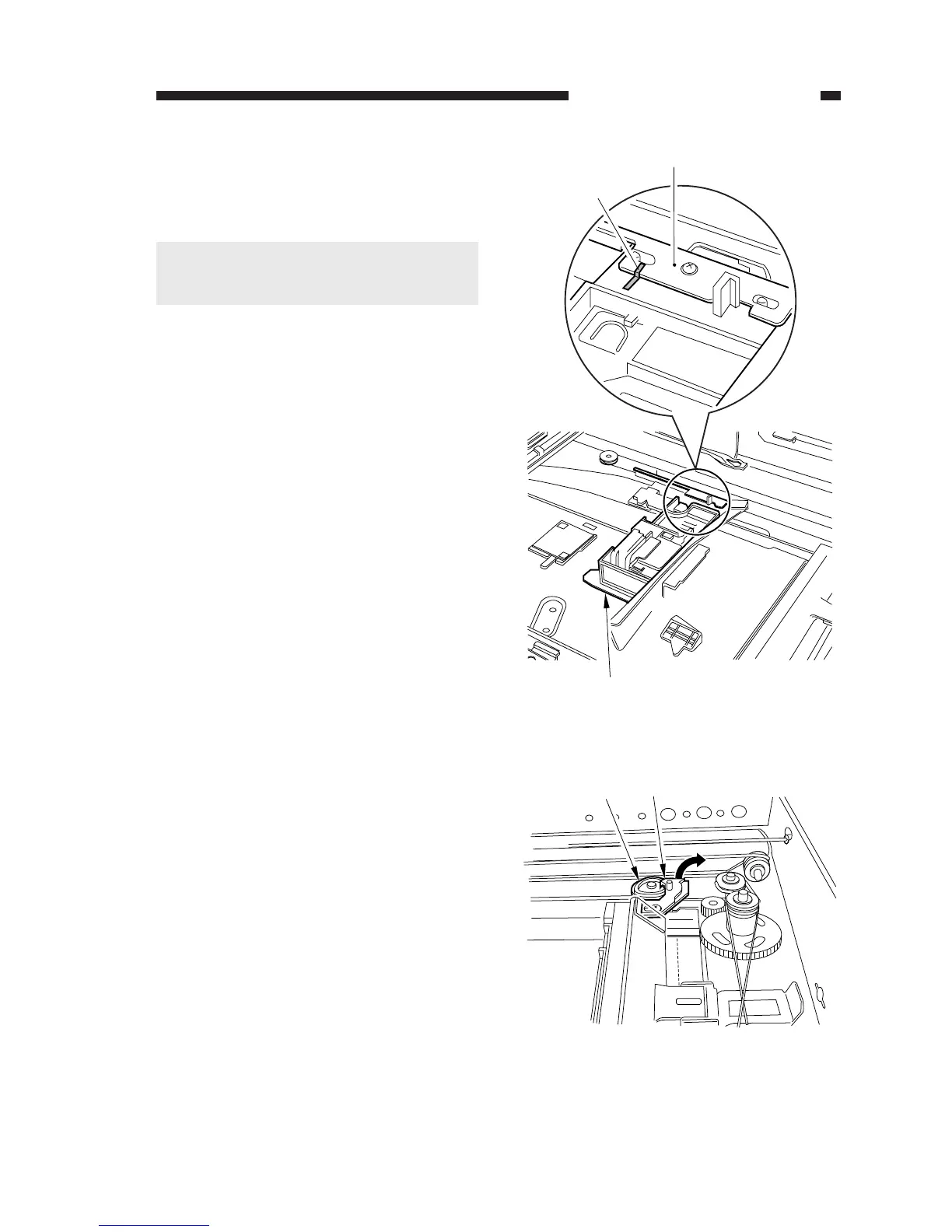

Figure 3-337
Figure 3-338
[3]
Marking
[4]
[5]
[6]
6) Disengage the lever [5] of the No. 4/5 mir-
ror mount and the gear [6].
5) Mark the position of the lens cable fixing
plate [3] and the lens mount [4] with a
scriber.
Caution:
When routing the lens cable, be sure to
refer to the marking made with a scriber.
