CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-34
Figure 3-341
Figure 3-339
Figure 3-340
[7]
[8]
[6]
[9]
[10]

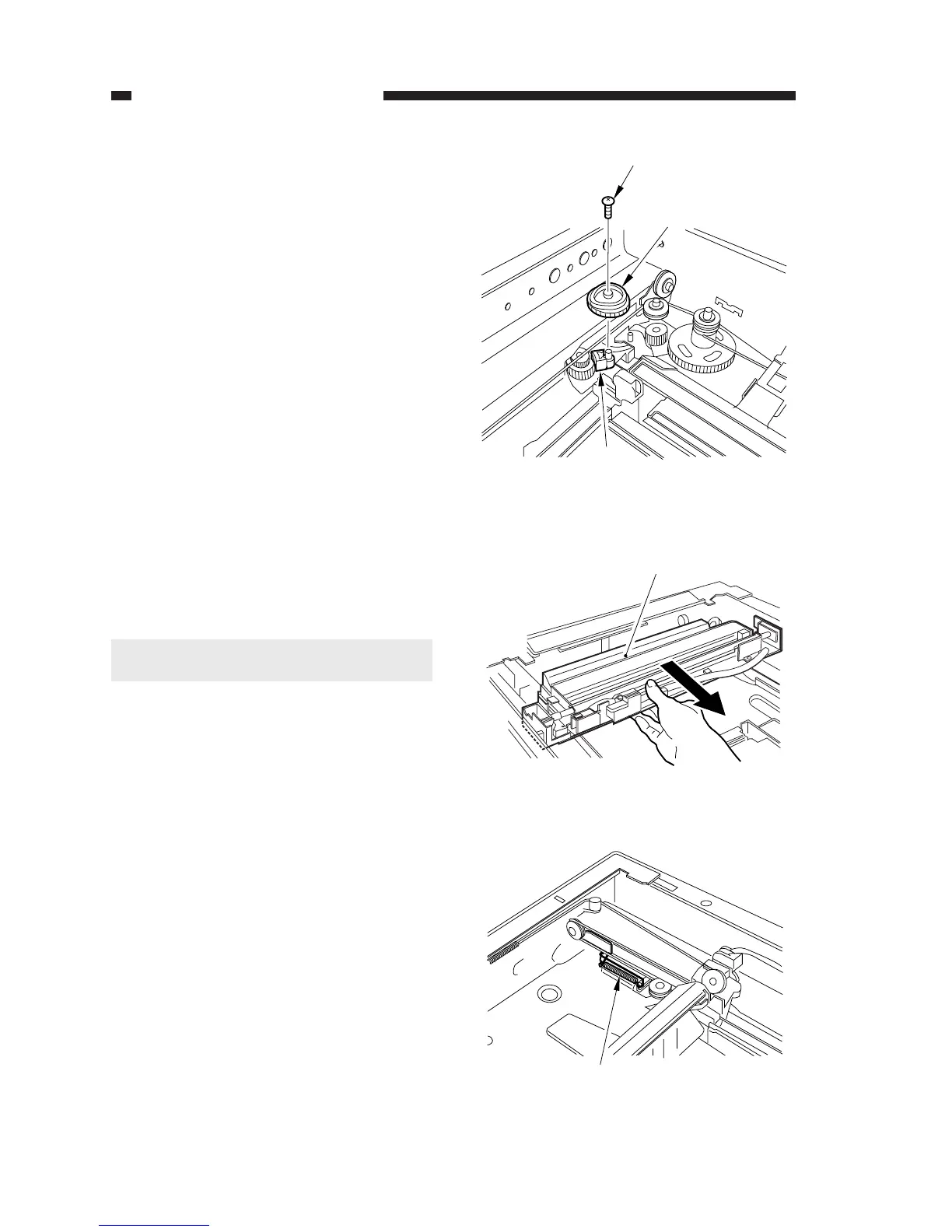

9) Remove the spring [10].
8) Holding the middle of the No. 1 mirror
mount [9], move it to the center of the
machine.
7) Remove the screw [7], and detach the cam
gear [6] and the cable retainer [8].
Caution:
Do not hold the reflecting plate.
To Next Page
