CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-37

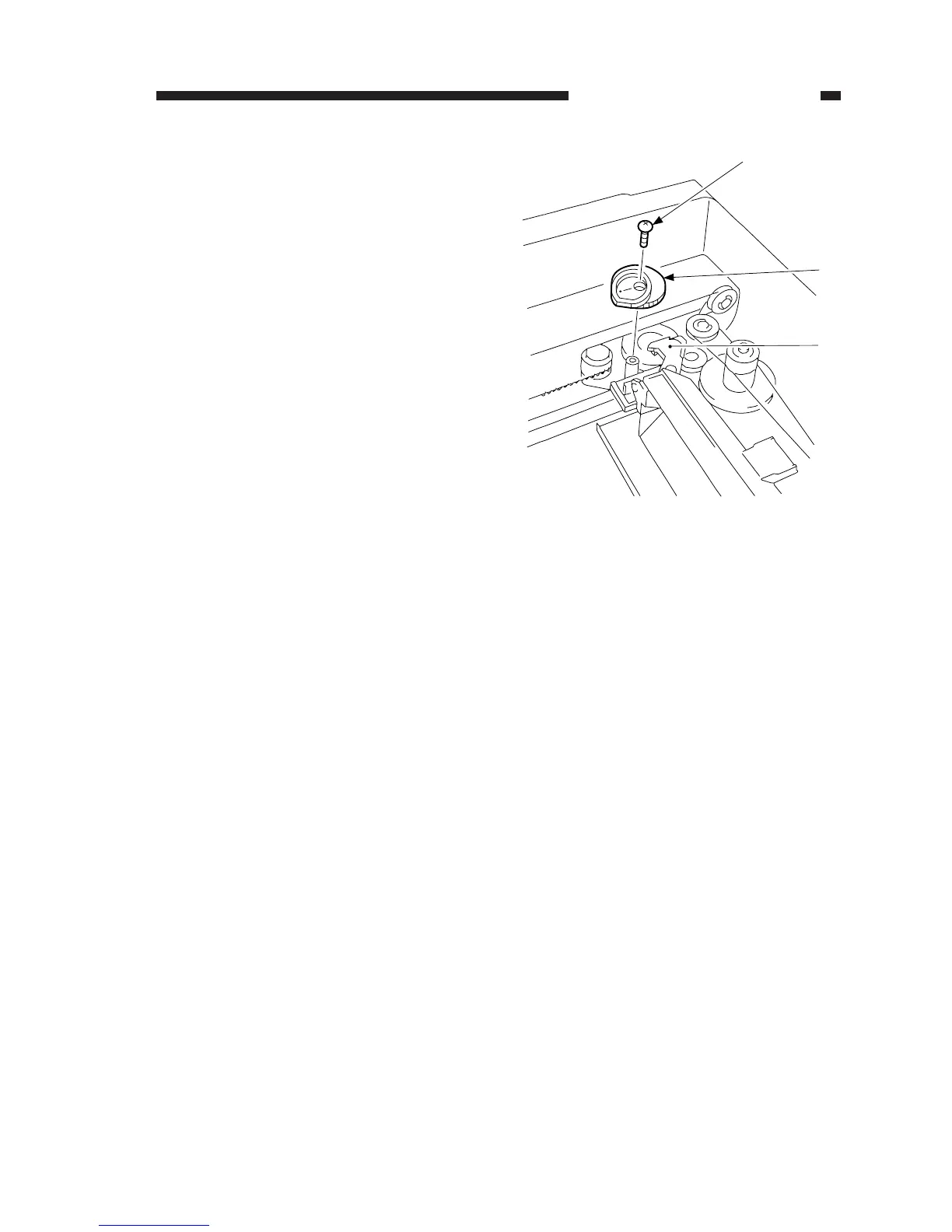

Figure 3-346
4) If the tip of the lever [1] and the marking
on the cam gear [2] do not match, remove
the fixing screw [4] of the cam gear [2]
and detach the cam gear; then, mount the
cam gear once again so that the marking
on it and the tip of the lever match.
