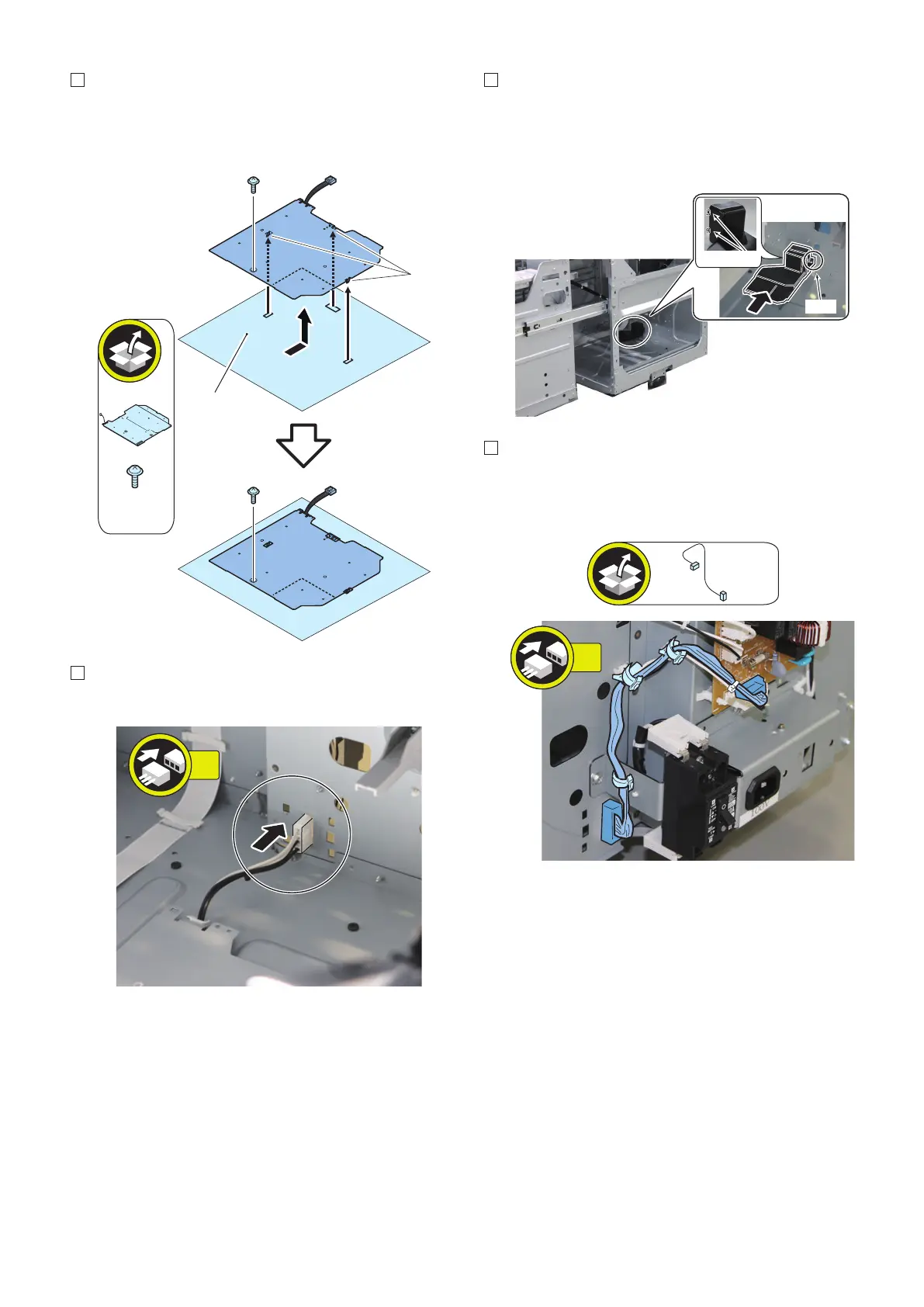

6. Install the Cassette Heater Assembly.
• 3 Claws
• 1 Screw (TP; M3x6)
Base Plate
Boss
TP; M3x6
7. Connect the connector to the POD Deck Lite.
1x
8. Install the Heater Connector Cover removed at
procedure 5.
• 2 Protrusions
• 1 Claw
Claw
Protrusion
9. Install the Cassette Heater Harness.
• 3 Reuse bands
• 2 Connectors
2x
6. Installation
141
