SW5
Spring

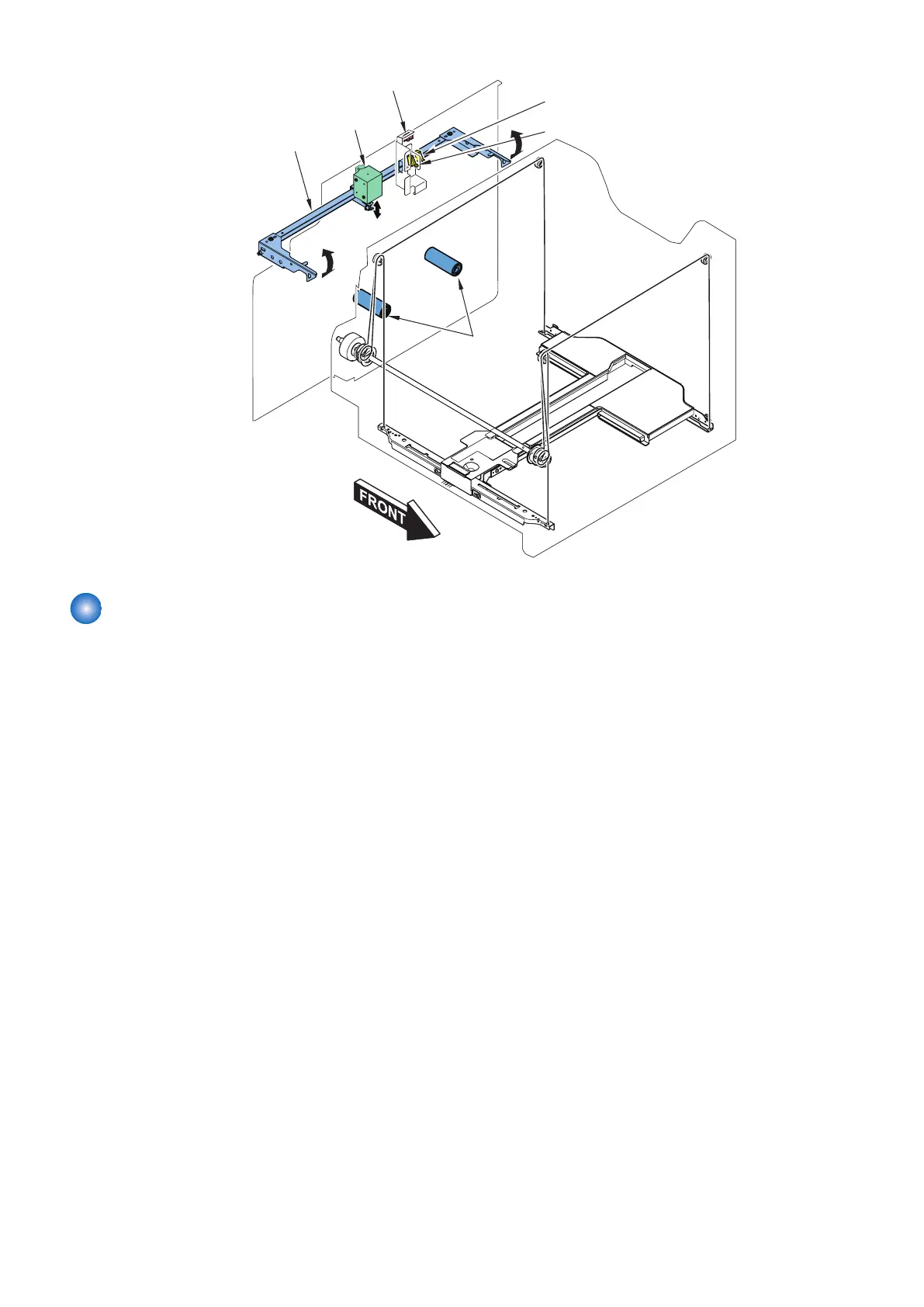

Compartment open/close arm
Compartment open solenoid(SL1)
Compartment open/close sensor(SR9)
Compartment open/close
detection switch(SW4)
Fan safety switch(SW5)
Air Assist Control
■ Overview
To facilitate separation of paper, the machine executes air assist control.
The fans (FM2, FM3) are combined to blow air against the paper so that the paper is shifted slightly to lose attraction, ultimately
preventing double-feeding.
To facilitate separation of paper in the high humidity environment, an air heater unit (H2) is equipped as standard.
A warming fan (FM2) with an air heater blows hot wind against paper to reduce the humidity, thus facilitating separation of paper.
