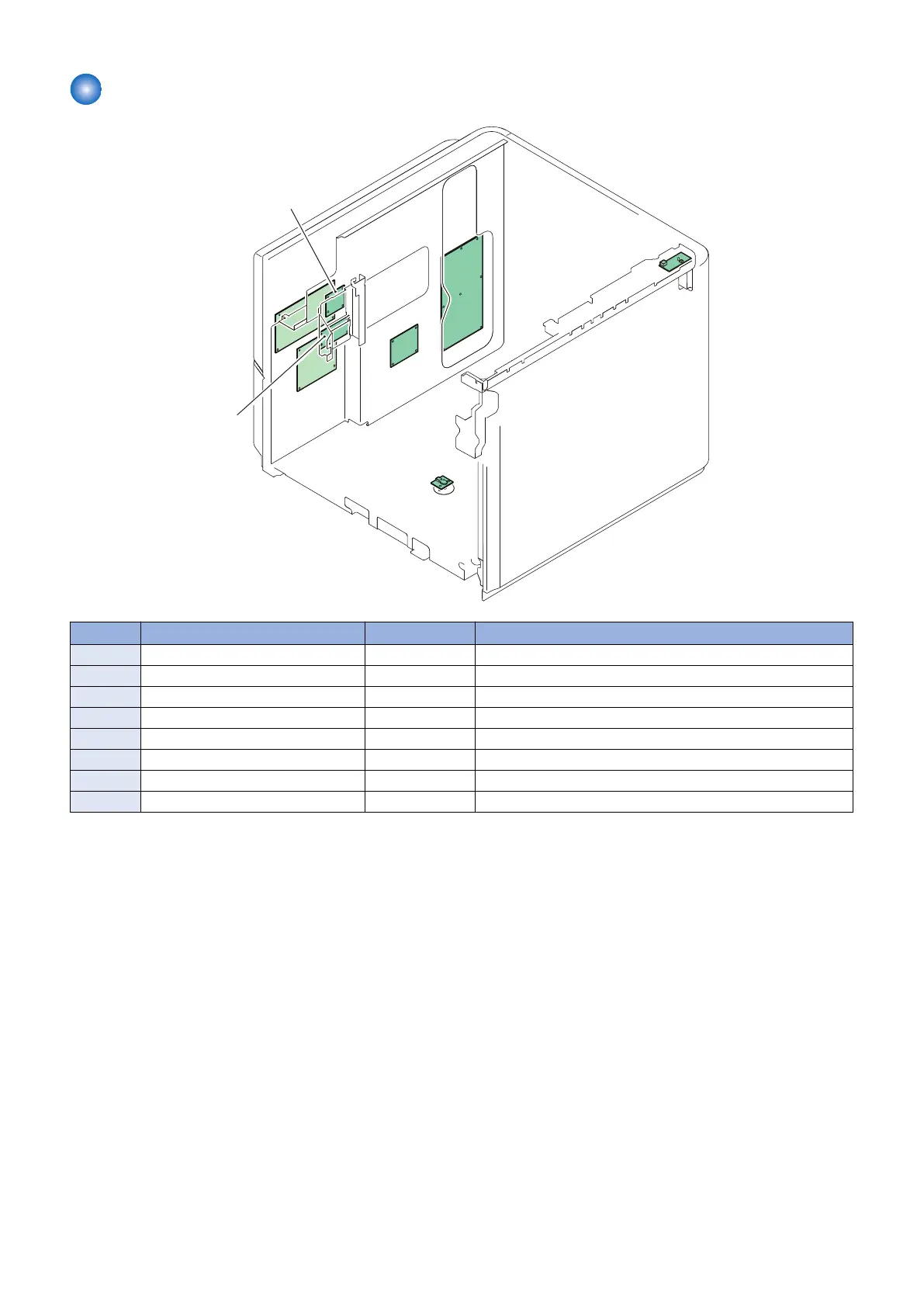

PCBs
PCB1
UN1
PCB5
PCB4
PCB6
PCB7
PCB2
PCB3
No. Name Main unit Reference
PCB1 Deck driver PCB - “Removing the Deck Driver PCB” on page 84
PCB2 Box driver PCB Compartment -
PCB3 Swing driver PCB Compartment -
PCB4 AC relay PCB - -
PCB5 Air heater driver PCB - -
PCB6 Compartment open switch PCB - -
PCB7 Paper width detection PCB Compartment “Removing the Paper Width Detection PCB” on page 84
UN1 DC power supply PCB - -
4. Disassembly/Assembly
39
