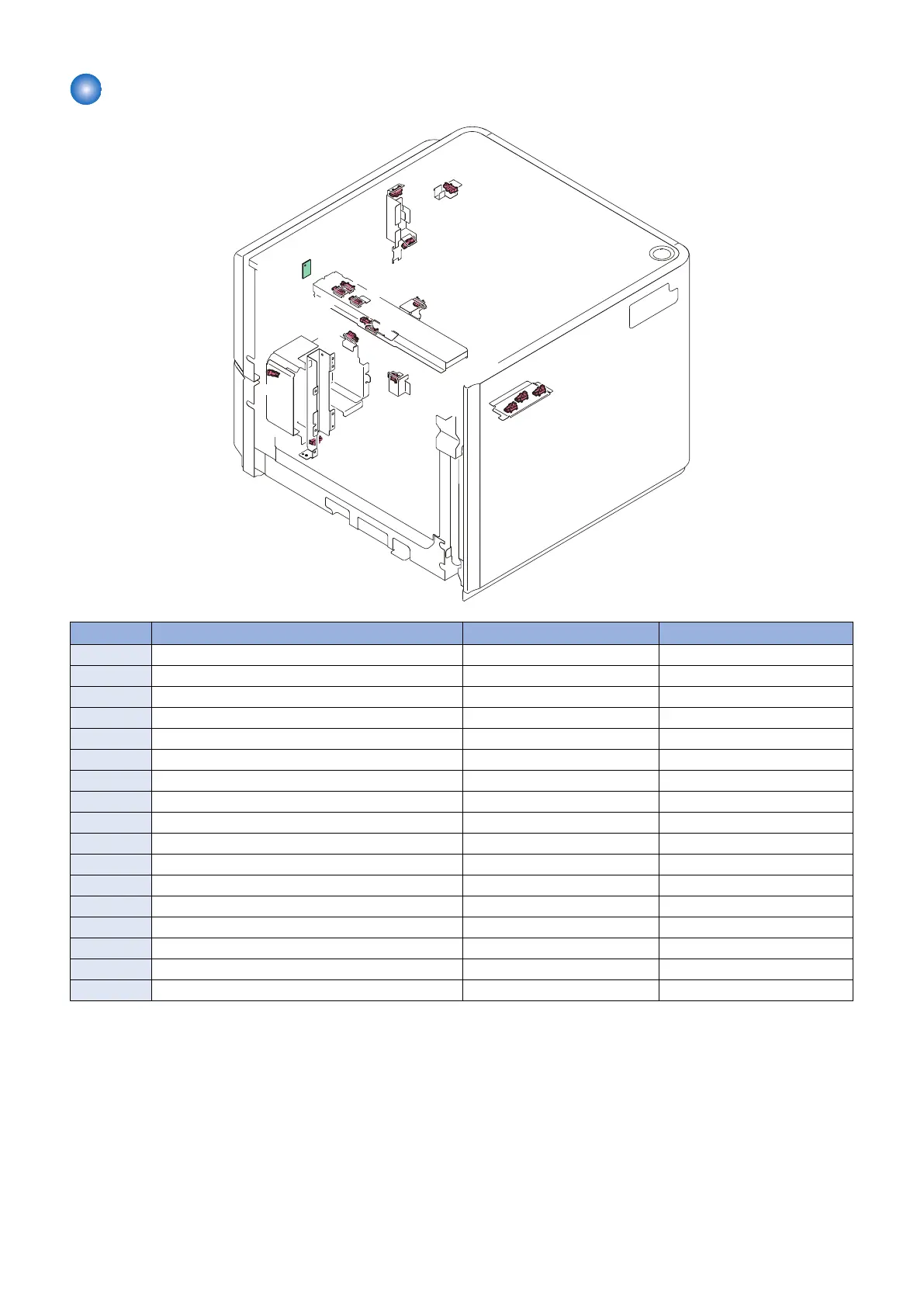

Sensors
SR8
SR16
SR15
SR1
SR2
SR10
SR11
SR12
SR3
SR18
SR4
SR7
SR6
SR13
SR5
SR14
SR9
No. Name Main unit Reference
SR1 Separation roller sensor Pickup assembly -
SR2 Relay paper sensor Compartment -
SR3 Paper level sensor Pickup assembly -
SR4 Deck lifter upper limit sensor 1 Pickup assembly -
SR5 Deck lifter upper limit sensor 2 Pickup assembly -
SR6 Deck pull-out sensor Pickup assembly -
SR7 Deck pickup sensor Pickup assembly -
SR8 Obstacle sensor - -
SR9 Compartment open/close sensor - -
SR10 Paper size sensor 1 Compartment -
SR11 Paper size sensor 2 Compartment -
SR12 Paper size sensor 3 Compartment -
SR13 Deck lifter lower position sensor Compartment -
SR14 Lifter motor rotation sensor Compartment -
SR15 Deck paper sensor Pickup assembly -
SR16 Swing HP sensor Compartment -
SR18 Environment sensor Compartment -
