Canon POD Deck Lite-C1 - Lifter Wire; Removing the Lifter Wire

Lifter Wire
Removing the Lifter Wire
■ Preparation
CAUTION:
The Lifter Plate must be moved to the bottom before removing the Lifter Wire.
1. Open the Compartment with the open button and then remove all sheets of paper from it.
2. Turn OFF the host machine after the Lifter Plate is automatically moved to the bottom.
3. Remove the power cord.
4. Remove the Compartment.
“Removing the Compartment” on page 56
5. Remove the Front Cover.
“Removing the Front Cover” on page 42
■ Procedure
● Deck Lifter Motor Assembly

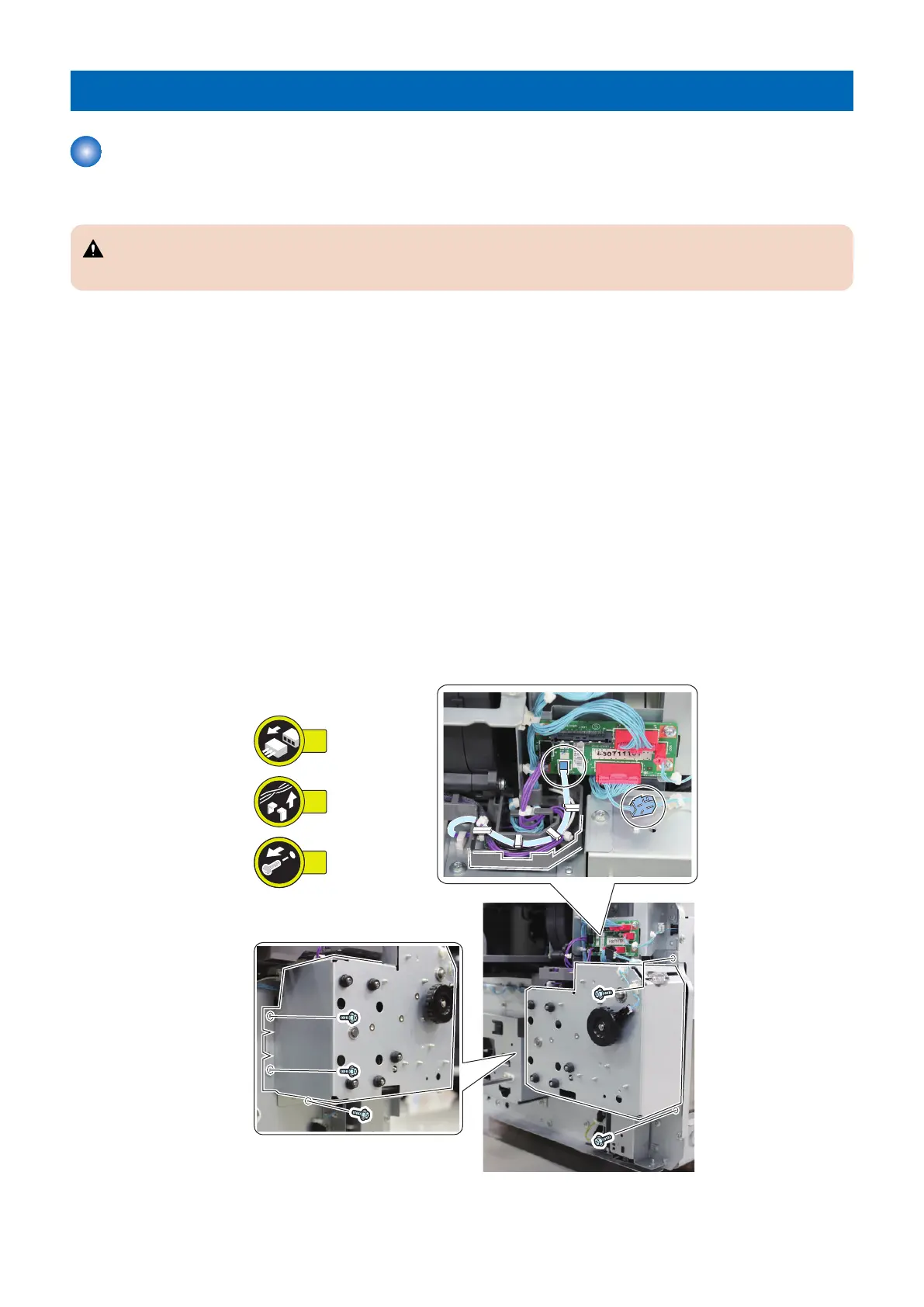

1. Remove the Deck Lifter Motor Assembly.
• 2 Connectors
• 1 Guide
• 5 Screws
5x
1x
2x
