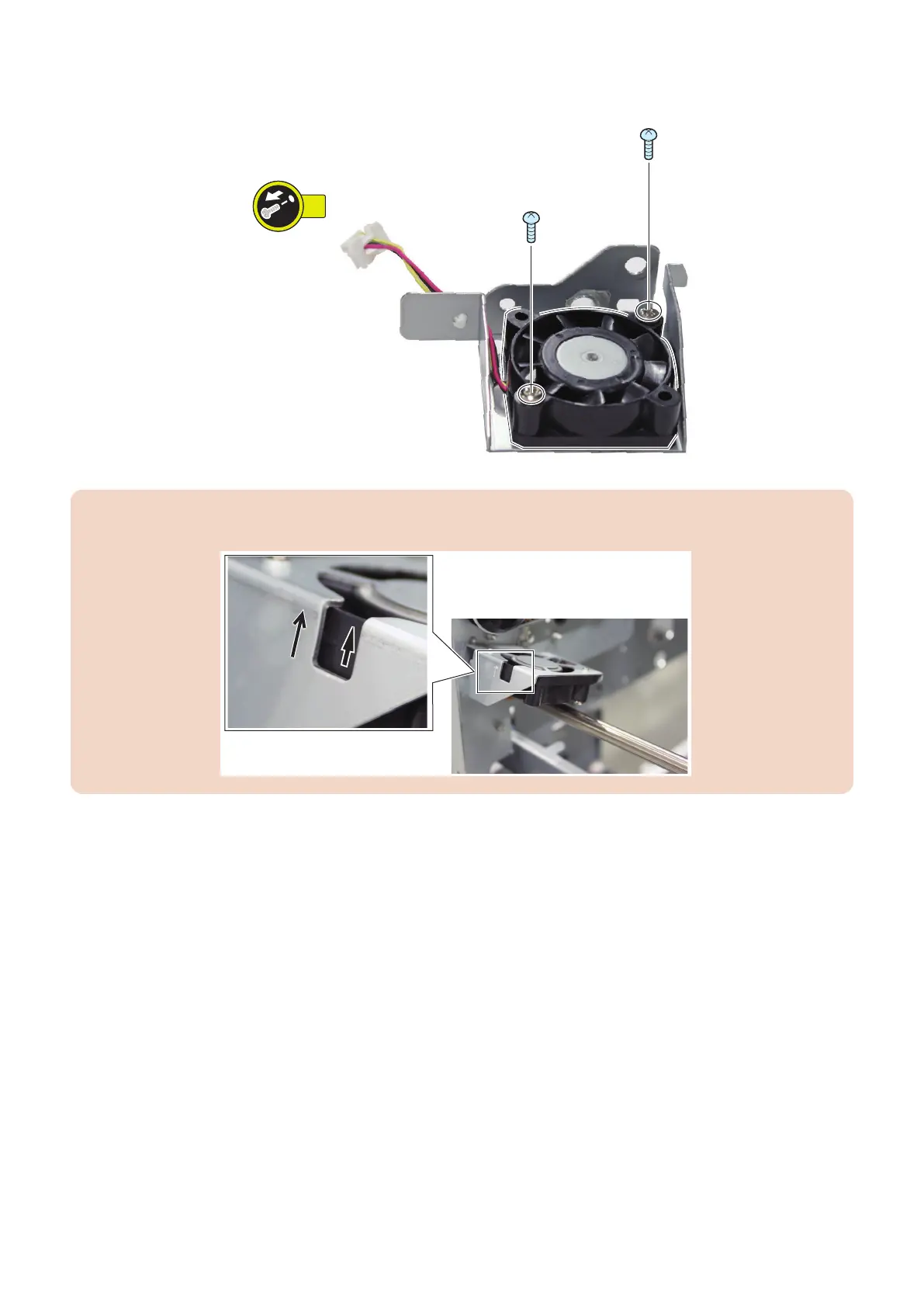

3. Remove the Pickup Release Solenoid Cooling Fan.
• 2 Screws
2x
CAUTION:
Align the direction of the arrow on the fan and the fixing plate at assembling of the Pickup Release Solenoid Cooling Fan.
4. Disassembly/Assembly
70
