Canon POD Deck Lite-C1 - Page 91

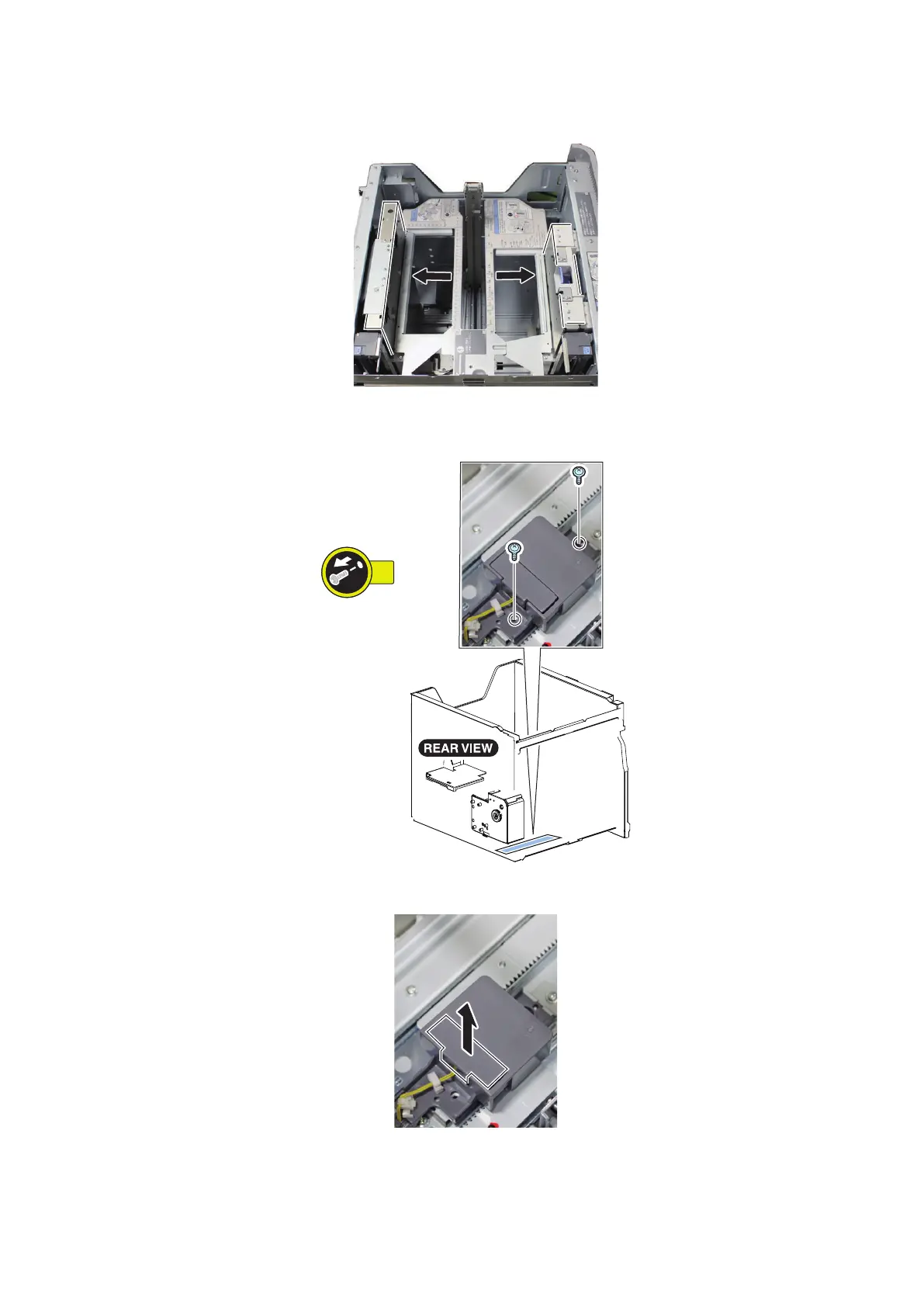

■ Procedure
1. Slide the Side Guide Plate to the maximum paper size position.
2. Remove the 2 screws from the Paper Width Detection PCB assembly.
• 2 Screws
2x
3. Remove the Paper Width Detection PCB Upper Cover.
4. Disassembly/Assembly
85
