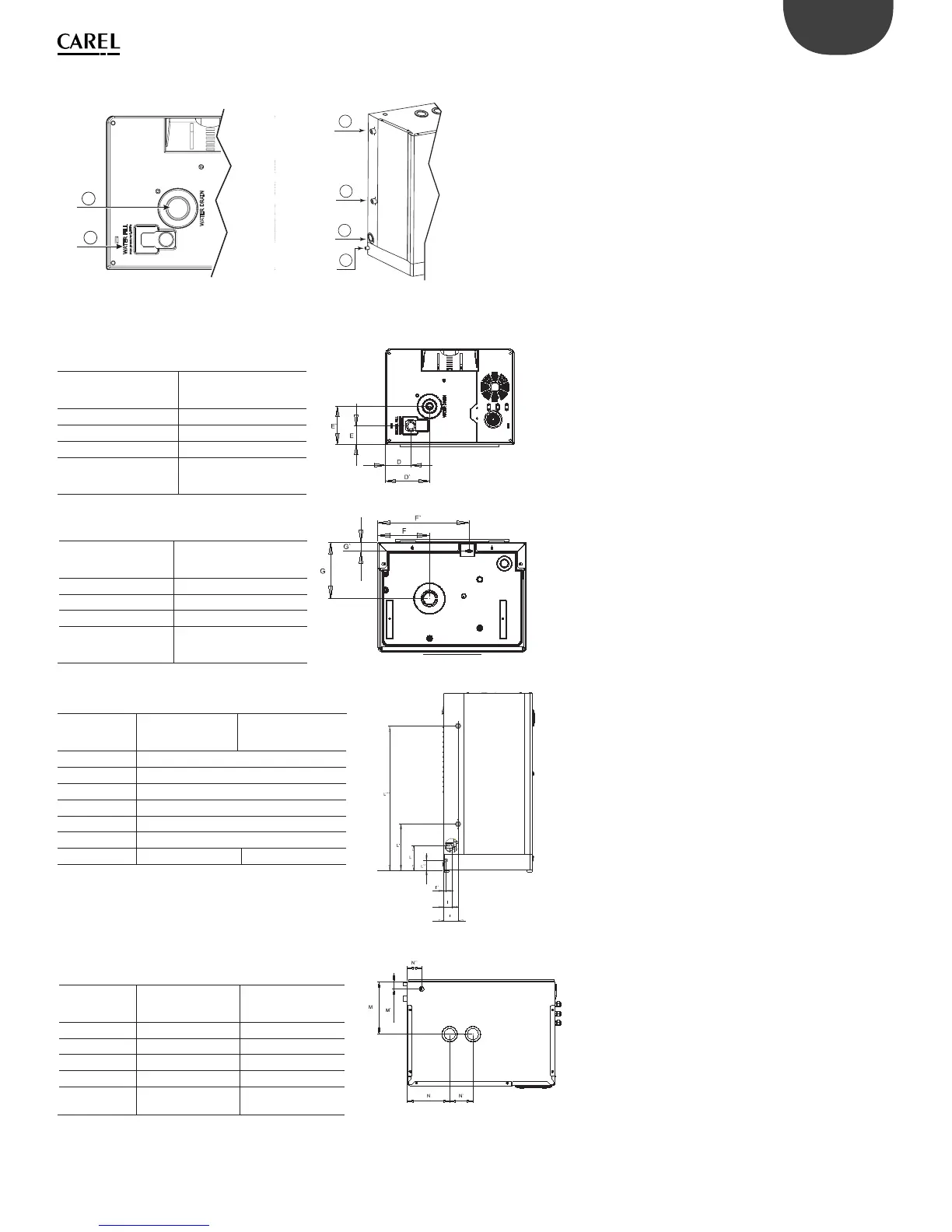

Fittings provided for the water connections:
Models UE001 to UE018 Models UE025 to UE065
B
A
A
B
C
D
Key:
A.
supply water inlet
B.
drain water outlet
C.
bottom tank drain water outlet (models
UE025 to UE065 only)
D.
supply water inlet drain tempering valve
Fig. 2.b
Hydraulic interfaces dimensions
Interfaces dimensions drain/fi ll
dimensions mm (in) UE001 to UE018
D
72.6 (28.6)
D’
125.4 (49.4)
E
52.6 (20.7)
E’
107.5 (42.3)
Interfaces dimensions
steam outlet and condensed drain
dimensions mm (in) UE001 to UE018
F
126.7 (50.0)
F’
224 (88.2)
G
137.9 (54.3)
G’
21.7 (8.6)
Interfaces dimensions drain/fi ll
dimensions
mm (in)
UE025 to UE045 UE045* to UE065
I
40 (15.8)
I’
72 (28.3)
I’’
10.2 (4.0)
L
123.2 (48.5)
L’
231.2 (91.0)
L’’
49.1 (19.3)
L’’’
678 (26.7) 752(29.6)
Interfaces dimensions
steam outlet and condensed drain
dimen.
mm (in)
UE025 to UE045 UE045* to UE065
M
172 (67.7) 223.7 (88.1)
M’
30.2 (11.9) 30.2 (11.9)
N
181 (71.3) 181 (71.3)
N’
--- 100 (39.4)
N’’
55 (21.7) 61 (24.0)
* 230 Vac models only
