Carel humiSteam Basic - Fitting the; Components and Accessories

9
ENG
“UE BASIC” +03U0042EN - rel. 1.3 - 10 May 2013

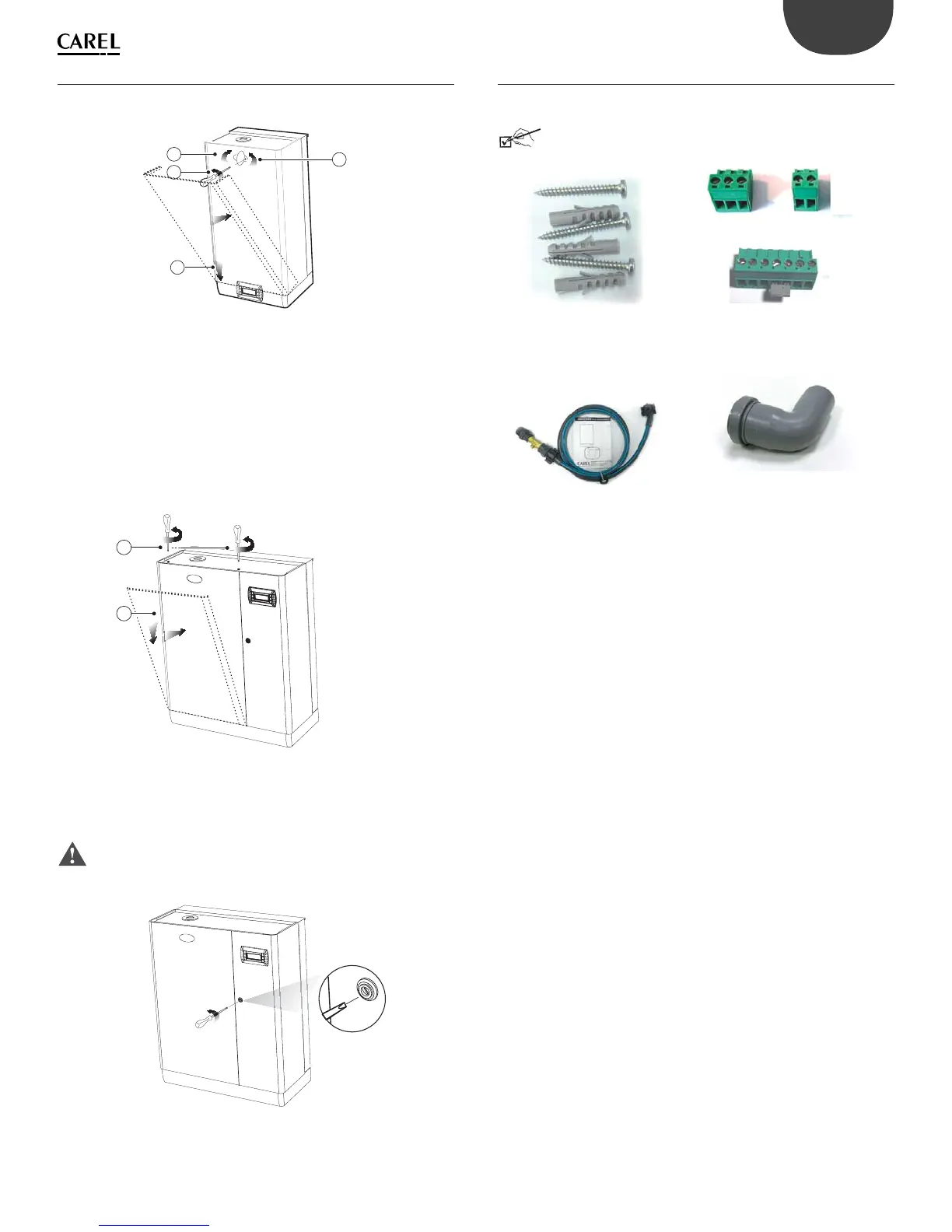

1.7 Fitting the front cover
Models UE001 to UE018:
1
3
4
2
Fig. 1.g
1. turn the red oval-shaped plate with the CAREL logo, revealing the
fastening hole below;
2. slip the cover onto the frame (keeping it slightly oblique), until it rests on
the rear edges, paying attention to the positioning holes on the side;
3. tighten the earth screw using a screwdriver;
4. turn the red oval-shaped plate with the CAREL logo until covering the
fastening hole below7.
Models UE025 to UE065:
1
2
Fig. 1.h
1. slip the cover/covers onto the frame (keeping it/them slightly raised
and tilted), until it rests on the rear edges;
2. tighten the screws on the top of the humidifi er using a screwdriver.
Important
Important: in models UE025 to UE065 open the electrical
compartment on the humidifi er using the lock with slot.
Fig. 1.i
1.8 Components and accessories
Once having opened the packaging and removed the front cover of the
humidifi er, make sure the following are included::
□ kit of screws with plugs for
wall-mounting
□ kit code 98C615P003
of connectors for the
electronic board.
 models UE001 to UE018
use fi ll hose connection
FWH3415000, and models
UE025 to UE65 use code
FWHDCV0000 non-return
valve with connection pipe
for fi ll water and use code
FWH3415000 for inlet drain
temperening.
□ models UE025 to UE065
only: angular plastic hose
(drain water connection).
