“UE BASIC” +03U0042EN - rel. 1.3 - 10 May 2013

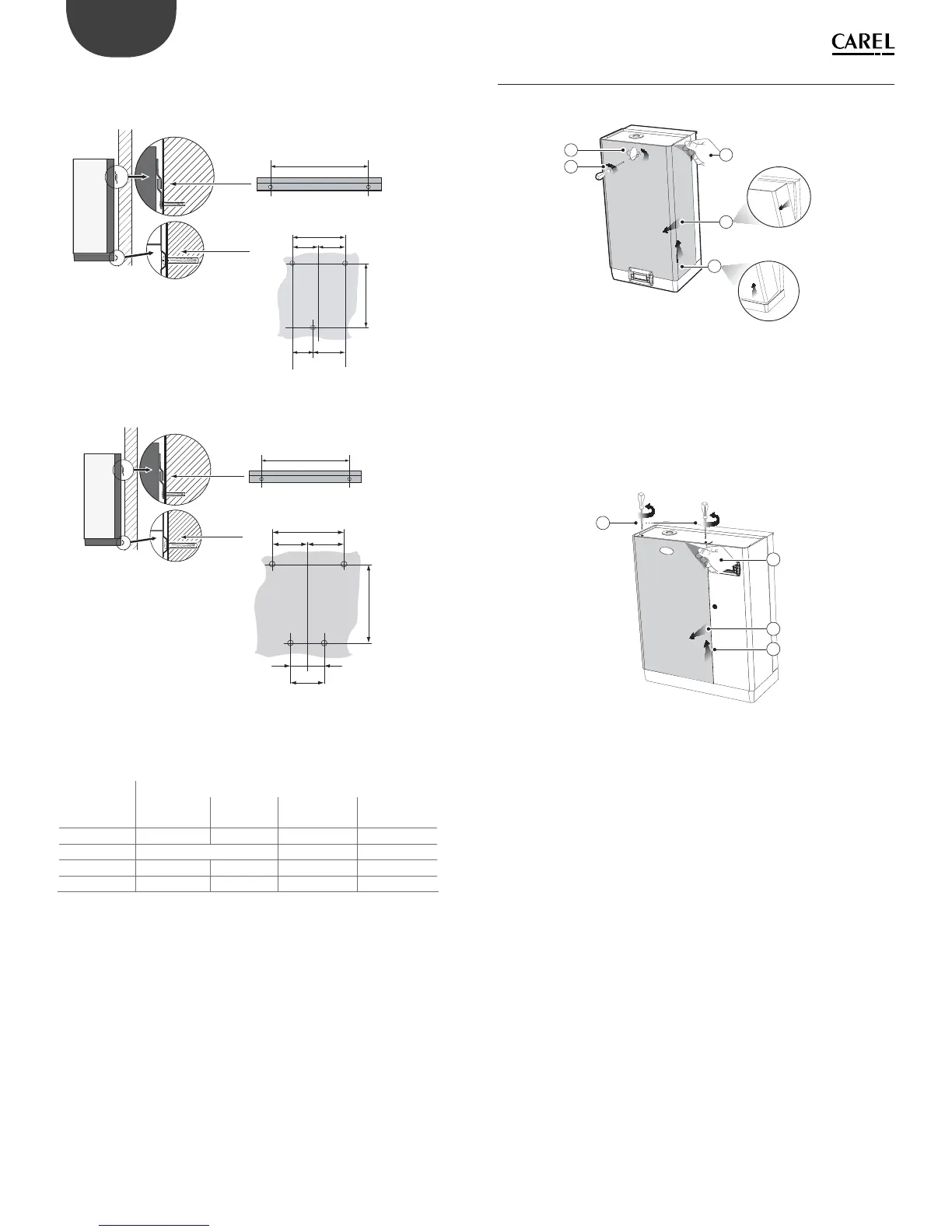

Spacing of the holes on the wall
Models UE001 to UE018
bracket
X
X
Y
Z Z’
==
Fig. 1.d
Models UE025 to UE065
distance mm
(“)
Models
UE001 to
UE018
UE009 to
UE018
UE025 to
UE045
UE045* to
UE065
X 270 (10.7) 270 (10.7) 445 (17.5) 535 (21.0)
Y 580 (22.8) 655 (25.8) 730 (28.7)
Z 107 (4.2) 107 (4.2) 250 (9.8) 340 (13.4)
Z’ 163 (6.4) 163 (6.4) -- --
* 230 Vac models only
1.6 Removing the front cover
Models UE001 to UE018:
1
2
3
4
5
Fig. 1.e
1. turn oval-shaped label with the Carel logo, revealing the head of the
earth screw below;
2. remove the screw using a screwdriver;
3. hold the cover by the sides and tilt;
4. remove the cover by moving to the bottom;
5. remove the protective fi lm
Models UE025 to UE065:
1
3
2
4
Fig. 1.f
1. remove the screws from the top of the humidifi er using a screwdriver;
2. hold the cover/covers from the top and lift it around 20 mm (0.79”);
3. remove the cover/covers by moving it/them forwards;
4. remove the protective fi lm (on all the outside surfaces of the
humidifi er).
bracket
X
X
Y
Z
=
==
=
Models UE025 to UE065
