Carel humiSteam Basic - Diagram of Three-Phase Models UE045 (208-230 V) and UE065(460-575 V)

32
ENG
“UE BASIC” +03U0042EN - rel. 1.3 - 10 May 2013

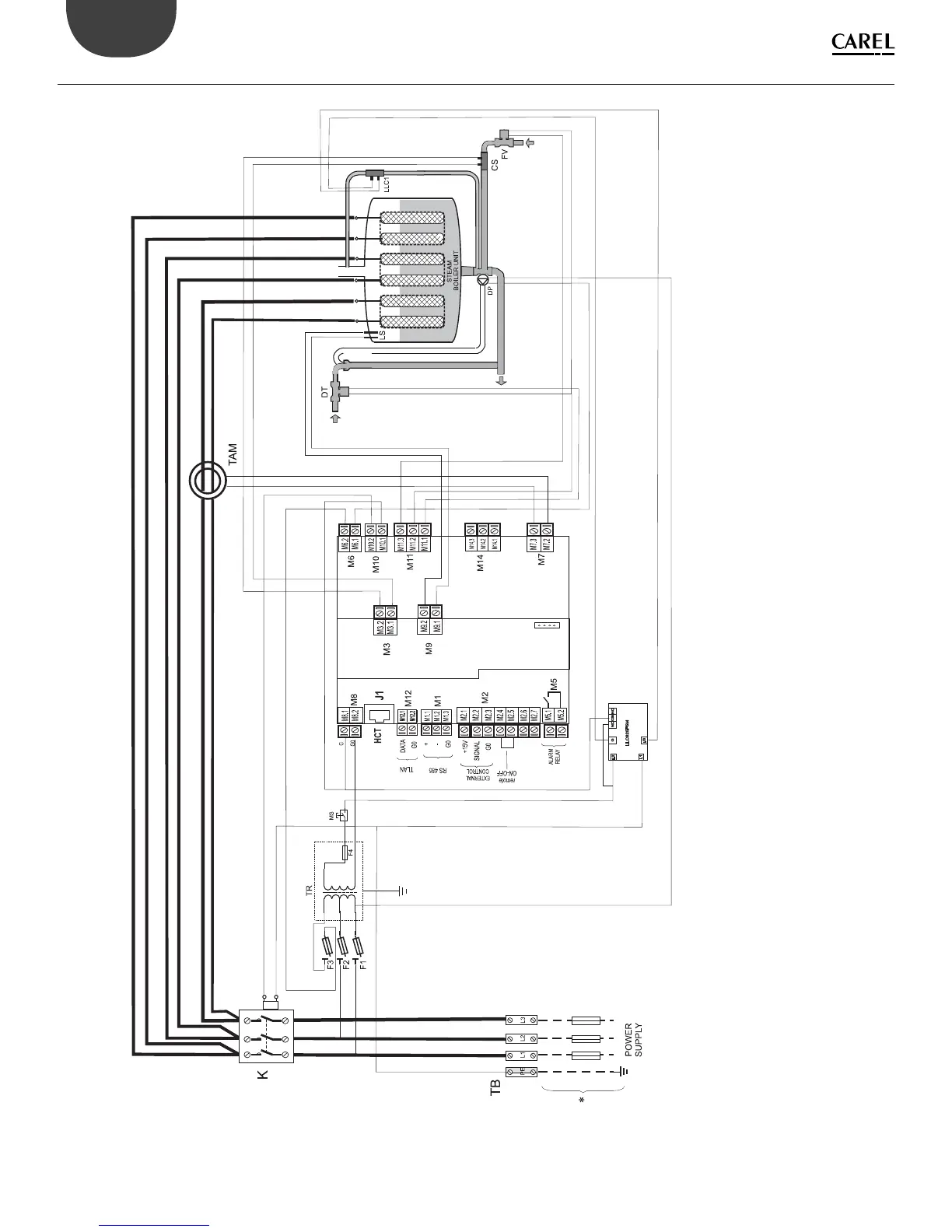

10.4 Diagram of three-phase models UE045 (208-230 V) and UE065(460-575V)
**
Fig. 10.d
(**) Important: for the TAM confi guration and connection see par. 11.1
key:
TB terminal block
K contactor
F1-F2 primary fuses
F3 fuse protection drain pump
F4 secondary fuse
TR transformer
MS manual switch
FV fi ll valve
DP drain pump
LS high level electrodes
CS conductivity meter
TAM external TAM
DT valve drain tempering
