2. WATER CONNECTIONS
Important: before proceeding, disconnect the humidifi er from
the power supply.
Models UE001 to UE018 Models UE025 to UE065
1
1
4
5
3
4
6
5
4
6
7
2
2
3

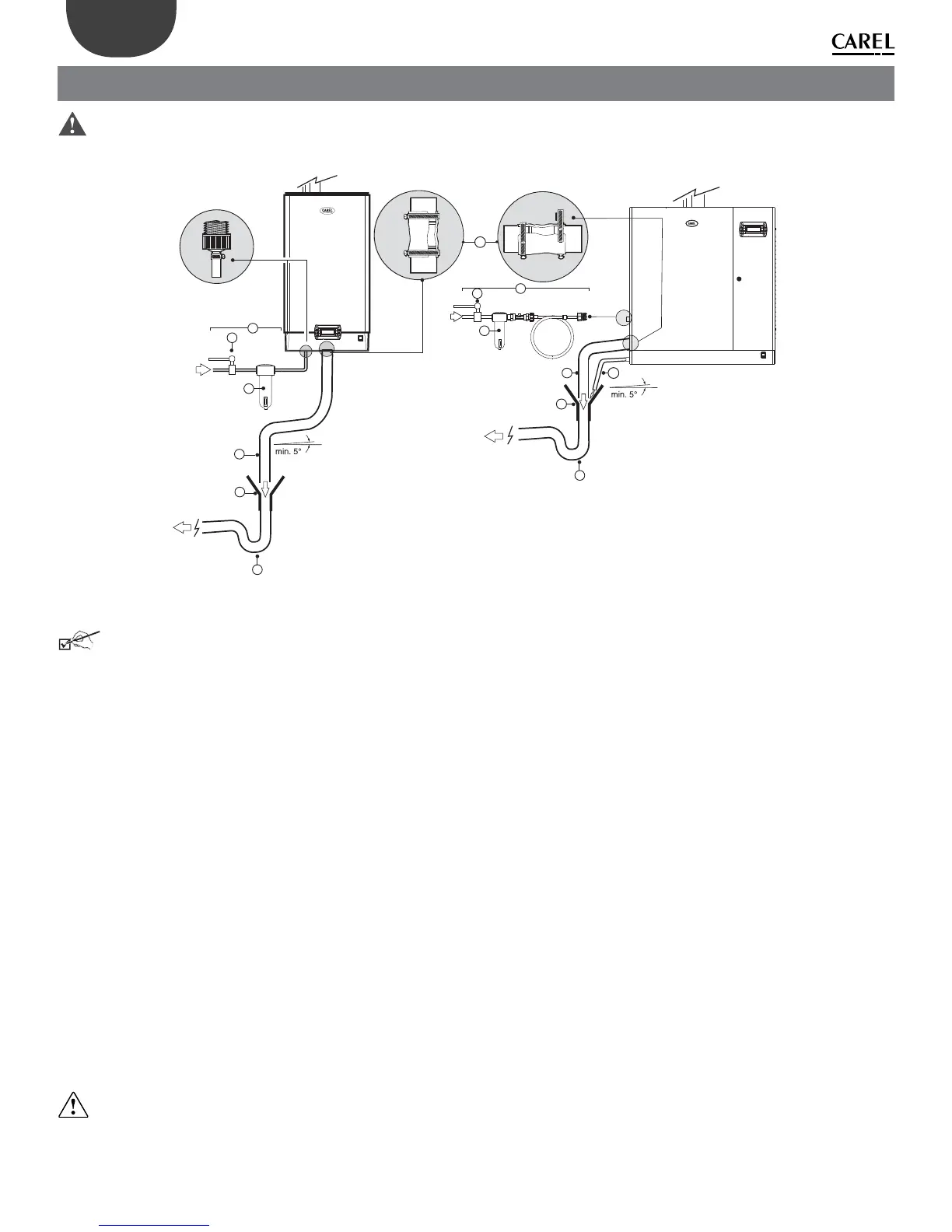

Fig. 2.a
Water connections:
□
1.
install a manual valve upstream of the installation (to be able
to shut off the water supply);
□
2.
connect the humidifi er to the water supply. On models
UE001 to UE0018, use a hose with 3/4’’G fi ttings (see par.
11.2 “Technical specifi cations” , compatible CAREL hose: code
FWH3415000). On models UE025 to UE065 connect the hose
with the non-return valve supplied (code FWHDCV0000) to
prevent the water inside the humidifi er from coming into
contact with the mains water;
□
3.
install a mechanical fi lter to trap any solid impurities (to be
connected downstream of the manual valve);
□
4
connect a section of non-conductive pipe or hose for draining
(resistant to temperatures of 100 °C (212 °F) and with a
minimum inside diameter of 40 mm/1.6” up to UE018, and 50
mm/ 1.9” for models UE025 to UE065);
□
5
prepare a funnel to interrupt continuity in the drain line funnel
for required air gap, can be composed of a piping reducer;
□
6
connect a drain trap to prevent the return of bad odours
(minimum inside diameter of 40 mm/1.6” up to UE018, and 50
mm/ 1.9” for models UE025 to UE065);
□
7
in models UE025 to UE0065: connect a drain hose ( minimum
inside diameter 15 mm ( 0.59” )) from the bottom tank of the
humidifi er (this can run into the drain funnel).
□
8
in models UE025 to UE065: connect the hose code
FWH3415000 for the drain tempering valve.
Important: when installation is completed, fl ush the supply hose for
around 30 minutes by piping water directly into the drain, without
sending it into the humidifi er. This will eliminate any scale or processing
residues that may block the drain pump and cause foam when boiling.
