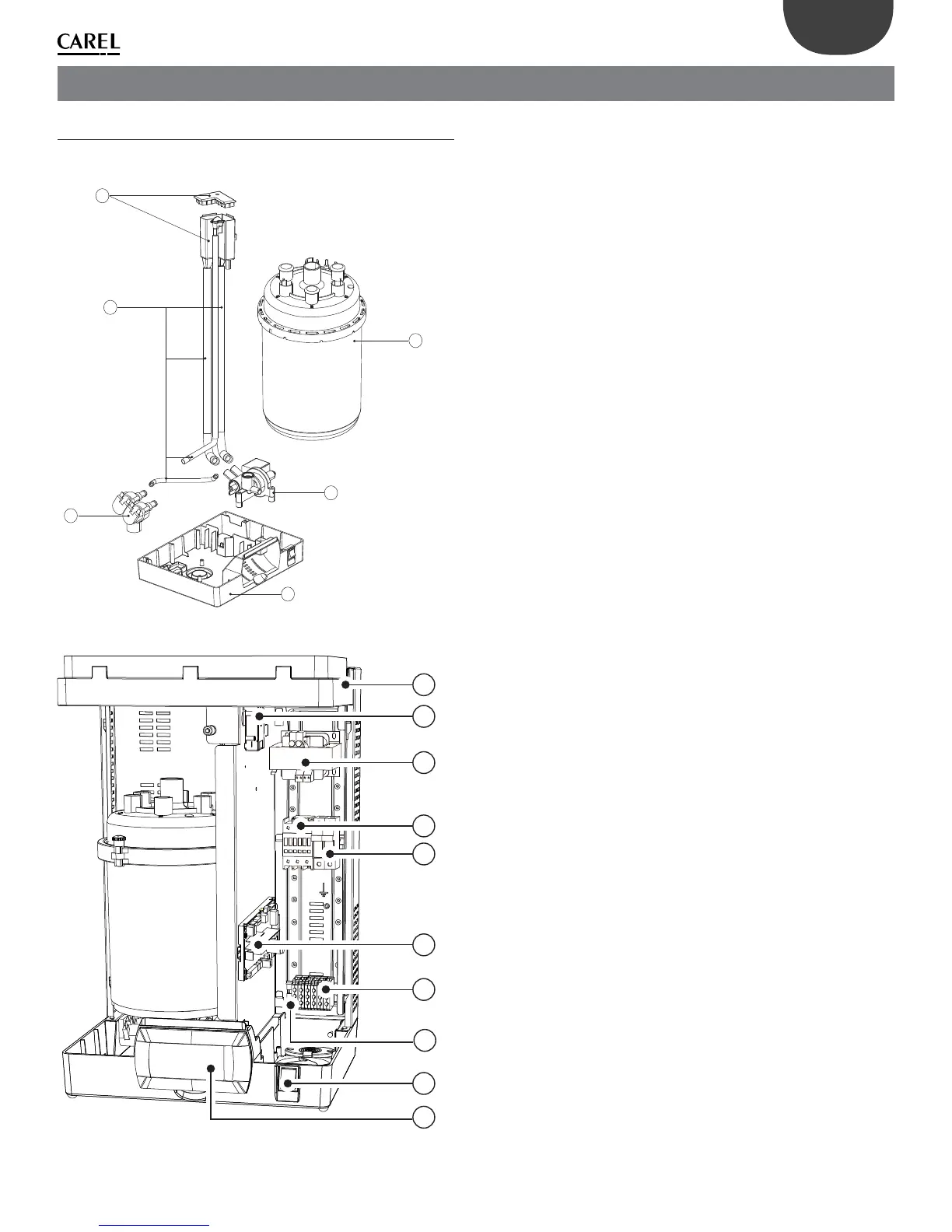

9. MAINTENANCE AND SPARE PART
9.1 Spare parts for models UE001 to UE018
4
5
6
3
2
1
Fig. 9.a
7
14
16
8
9
10
12
15
13
11
Fig. 9.b
Key to Figs. 9a & 9.b:
1 fi ll tank
2 internal tubing kit
3 fi ll solenoid and drain tempering valve kit
4 cylinder
5 manifold with drain pump
6 plastic base
7 plastic humidifi er top
8 TAM (transformer for measuring the current)
9 transformer
10 contactor
11 fuse holder F1-F2
12 electronic controller
13 power terminals
14 fuse holder F3
15 switch
16 terminal with display
