Carrier 42QHG009D8S Installation Manual

CAUTION

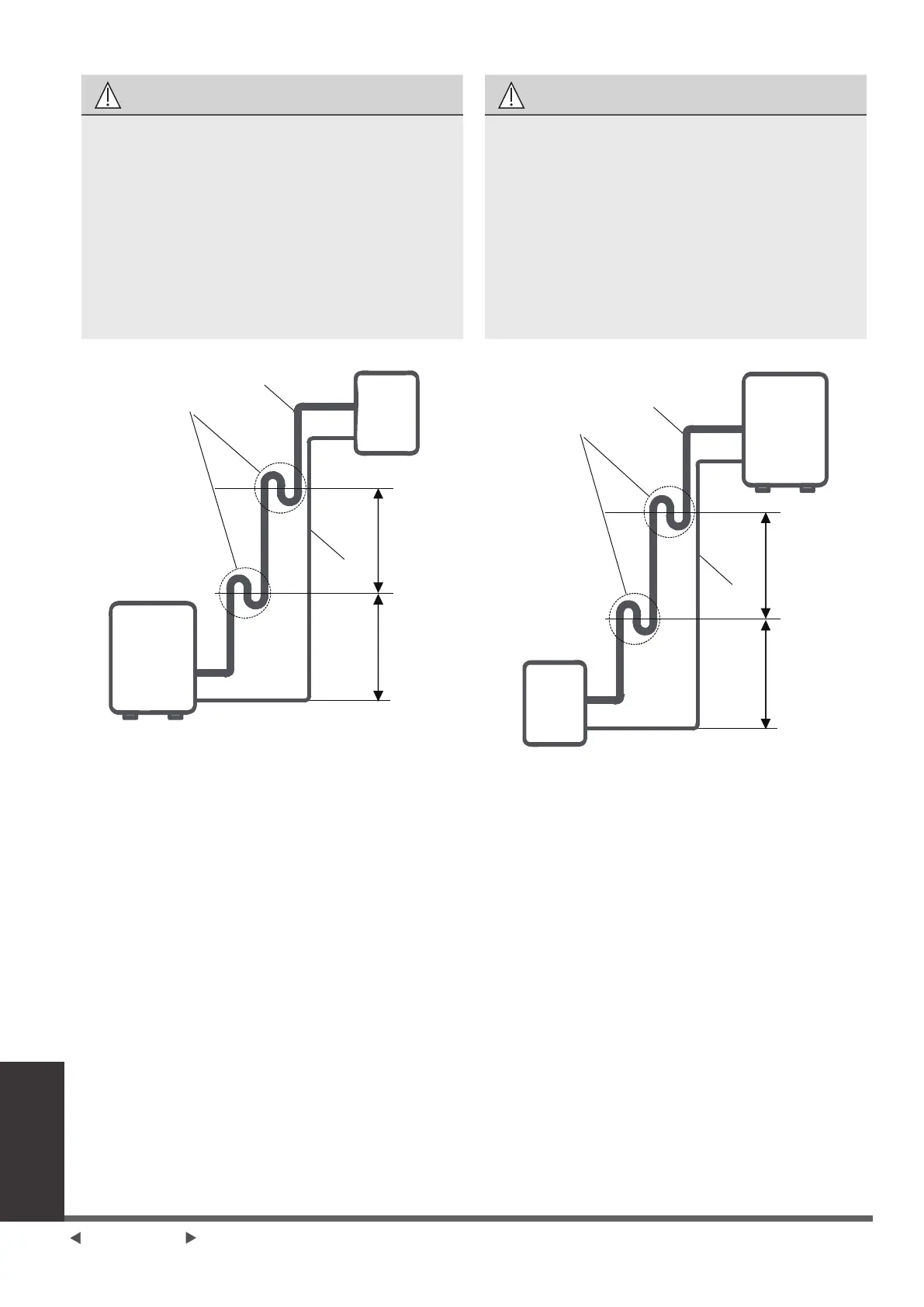

• Oil traps
If the indoor unit is installed higher than
the outdoor unit:
-If oil ows back into the outdoor unit’s
compressor, this might cause liquid
compression or deterioration of oil
return. Oil traps in the rising gas piping
can prevent this.
An oil trap should be installed every
10m (32.8ft) of vertical suction line riser.
Oil trap
Gas piping
Indoor unit
Outdoor unit
Liquid piping
10m/32.8ft
10m/32.8ft
The indoor unit is installed higher than the
outdoor unit
CAUTION
If the outdoor unit is installed higher
than the indoor unit:
-It is recommended that vertical suction
risers not be upsized. Proper oil return
to the compressor should be maintained
with suction gas velocity. If velocities
drop below7.62m/s (1500fpm (feet per
minute)), oil return will be decreased.
An oil trap should be installed every
6m(20ft) of vertical suction line riser.
Oil trap
Gas piping
Indoor unit
Outdoor unit
Liquid piping
6m/20ft
6m/20ft
The outdoor unit is installed higher than the
indoor unit
Refrigerant piping
Connection
Page 18-GB
