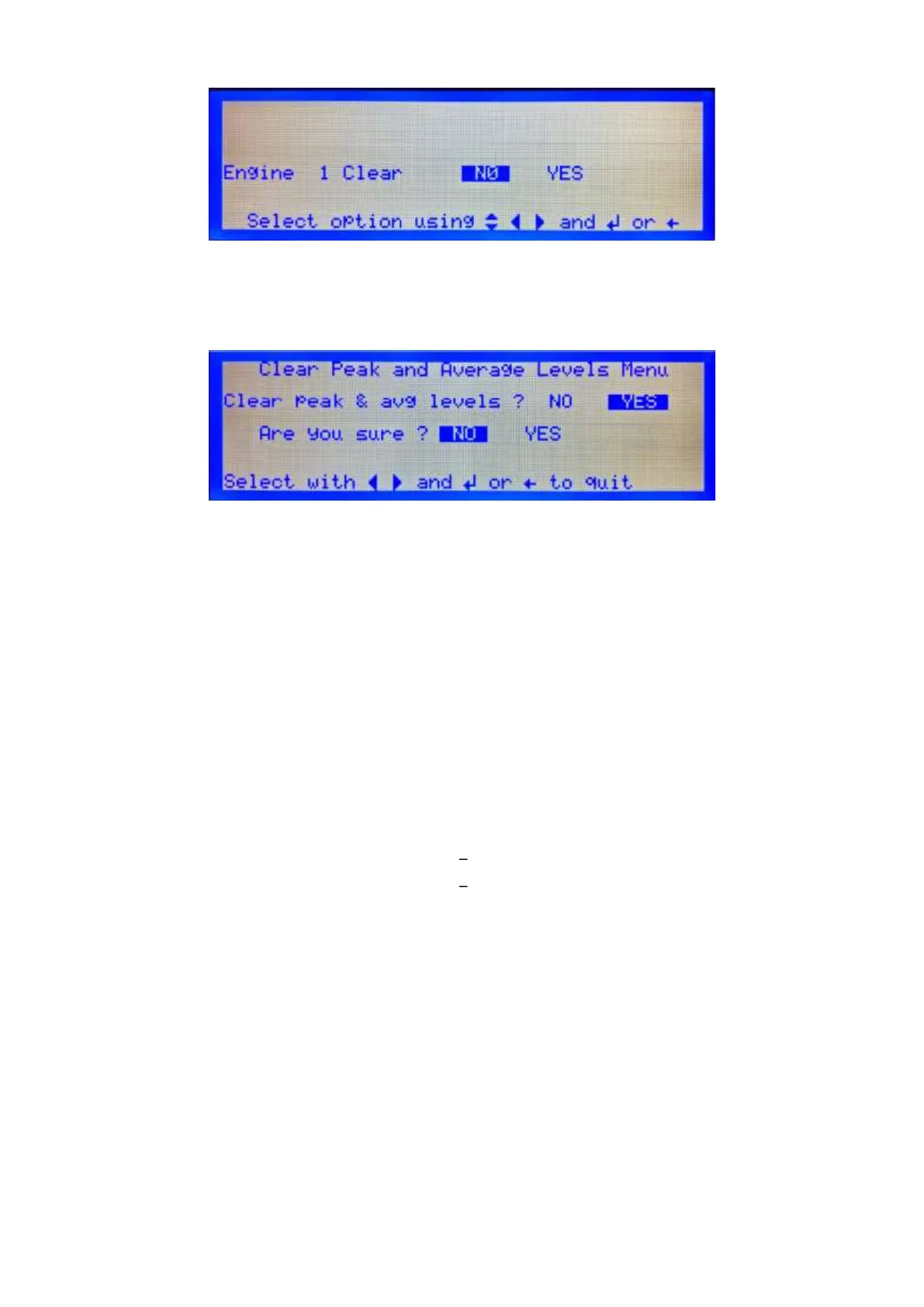

Figure 72 Clear Max Average Levels
c. Select Yes to confirm the levels are to be cleared.
d. From the Configuration menu, Figure 42, select 8. Clr Peak & Avg
Figure 73 Clear Peak and Average Levels
e. Select Yes to confirm the levels are to be cleared.
8. To release the pipe from the connector, press in the metal collar on the end of the connector
at the same time as pulling the pipe out
9. Remove the nylon pipe from the pipe connector for stowage purposes.
10. The wick is reusable and can be left in the wick holder. Fully extinguish the wick after use
at all times.
11. Refer to the Material Safety Data Sheet in the event of health or safety issues.
Method 2 - Using Artificial Smoke
It is important when using this method that only approved smoke canisters are used as other brands
may deposit residue within the detector sample chamber affecting the performance.
Smoke canisters approved for use on the Graviner Mk7 Oil Mist Detection system are:
HSI Fire and Safety SmokeCheck 25S
HIS Fire and Safety PurCheck
When using this type of spray canister, it will inject smoke at a rate where the rise of oil mist is rapid and
will pass through the alarm thresholds extremely quickly.
1. Push the nylon pipe of the smoke tester into the connector on the side of the detector base body
(refer to Figure 70).
2. Using a can of artificial smoke, spray enough artificial smoke into the pipe connector to cause
an alarm condition.
3. After tests are completed the maximum actual average level, Detector peak level and current
average readings should be erased.
