CASE CONSTRUCTION CX37C - 4-way selection proportional switch (Optional); Operating guidelines for usage of hydraulic attachments

9-ACCESSORIES
4-wayselectionproportionalswitch(Op-
tional)

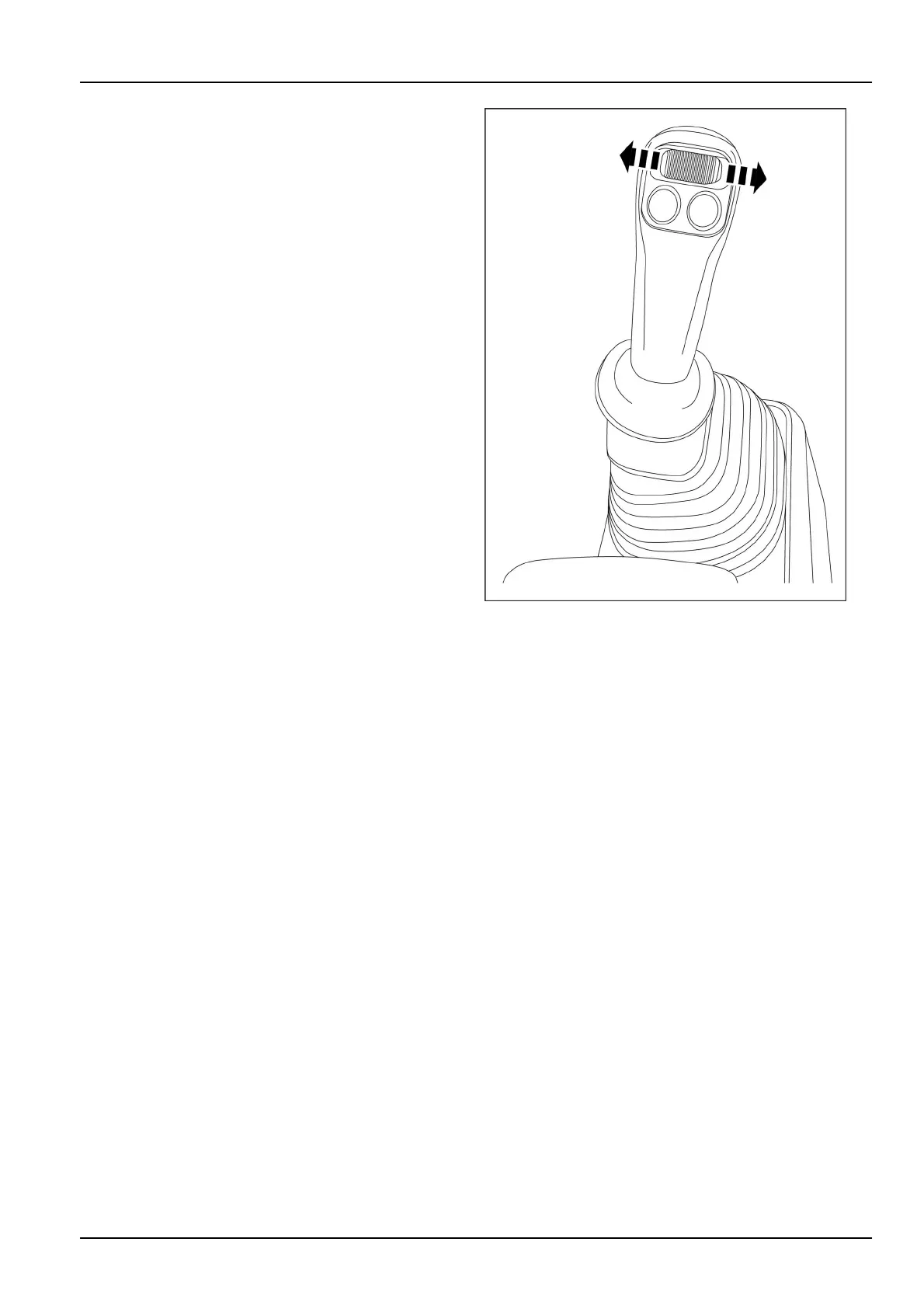

Theattachmentcanberotatedbymeansofthepropor-
tionalswitchontheleft-handcontrollever.Thisfunction
appliestodoubleactionhydraulicattachmentcircuit.
Thebasicoperationofthe4-wayselectionproportional
switcharethefollowing:
•
Operatetheproportionalswitchtotheleft-handtorotate
counterclockwisetheattachment.
•
Operatetheproportionalswitchtotheright-handtoro-
tateclockwisetheattachment.
ConsultyourCASECONSTRUCTIONdealertoselectthe
optionalaccessorycompatiblewithyourmachineandto
correctlyadjusttheowrequiredforitsuse.
SMIL16MEX1498BA6
Operatingguidelinesforusageofhydraulicattachments
Alwaysselectanhydraulicattachmentwhichissuitableforinstallationonthemachine,inordertoavoidseveredam-
agestothemachineframesandtothemachinesystems.Makesuretoselectanhydraulicattachmentwhichdoes
notcompromisetheoverallmachinestability.Makesuretoselectanhydraulicattachmentwhichproperlymatches
thecapacityoftheauxiliaryhydrauliccircuitofthemachine.
NOTICE:makesuretoknowthemaximumworkingpressureallowedbytheattachment.
MakesuretoreadandunderstandtheOperator'sManualofthehydraulicattachment.
AlwaysrefertotheOperator'sManualofthehydraulicattachmentforproperandsafeinstallationoftheattachment
tothemachine.
AlwaysrefertotheOperator'sManualofthehydraulicattachmentandtothefollowinginstructionsinthismanualfor
properandsafeusageoftheattachment.
AlwaysrefertotheOperator'sManualofthehydraulicattachmentforpropermaintenanceoftheattachment.Always
refertotheOperator'sManualofthemachineforspecicmaintenanceschedulerelatedtotheusageofspecic
attachments(e.g.replacementofthehydraulicltersandofthehydraulicuid,greasingofthepinsofthebucket
linkage).
9-5
