4-OPERATINGINSTRUCTIONS

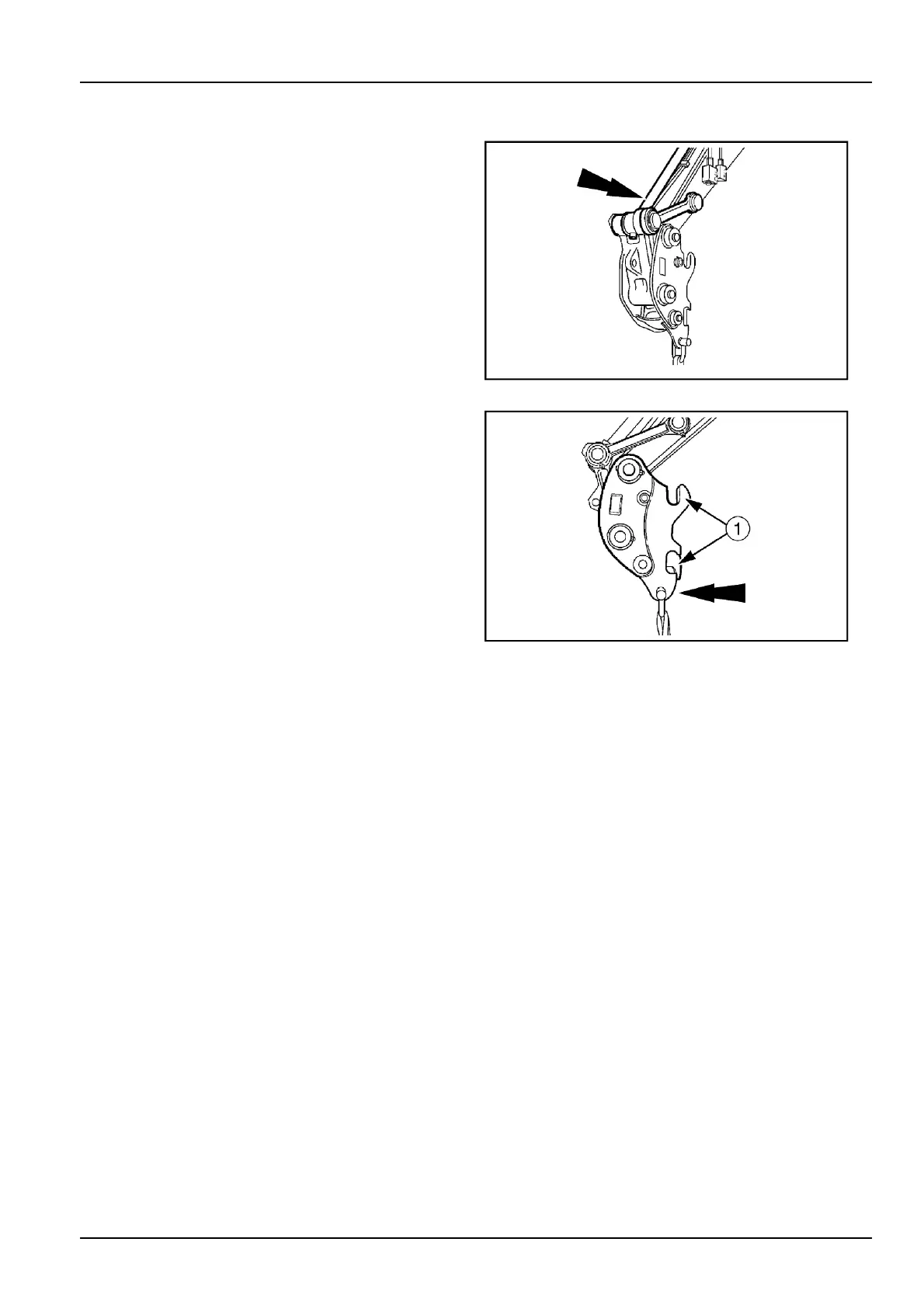

Handlingtheloadwiththequickcoupler(optional)

Theloadwiththequickcouplermustbehandledwiththe

bucketcylinderrodcompletelyextended.

NOTICE:maintainthispositionthroughouttheloadhan-

dlingoperation.

SMIL13CEX2871AB2

Thehandlingeyemustbeabletobeseenfromthecab

throughouttheloadhandlingoperation.

NOTICE:itisstrictlyforbiddentousethefrontorrear

xingpoints(1)ofthequickcouplertohandletheload.

NOTICE:thequickcouplereyecanbeusedforhandling

loadsupto10t.

SMIL13CEX2872AB3

4-17
