CASE CONSTRUCTION CX75C SR - Machine Orientation

1-GENERALINFORMATION
Machineorientation
Theterms"Right-hand","Left-hand","Front"and"Rear"
areusedinthismanualtoindicatethesidesastheyare
seenfromtheoperator'sseatwhenthecabisoverthe
idlerwheels.
NOTE:theillustrationoppositeshowsthemachineinnor-
maltravelposition.Innormaltravelposition,thecabis
overtheidlerwheels.Thetravelreductiongearsareat
therearoftheupperstructure.

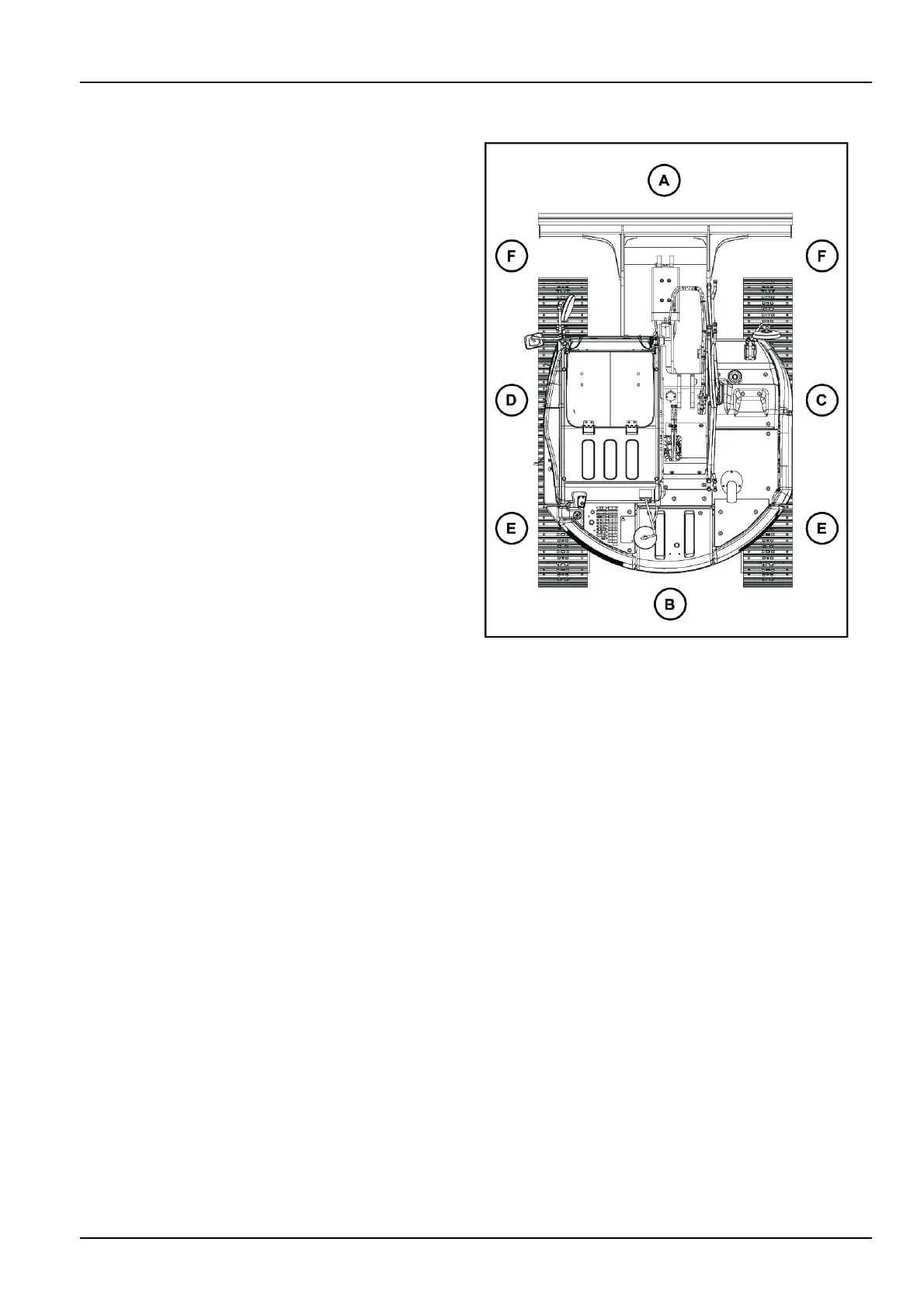

(A)Front
(B)Rear
(C)Right-handside
(D)Left-handside
(E)Travelmotors
(F)Idlerwheels
SMIL13CEX2514BB1
