3-CONTROLS/INSTRUMENTS
FORWARDCONTROLS
Handcontrolleversandpedals

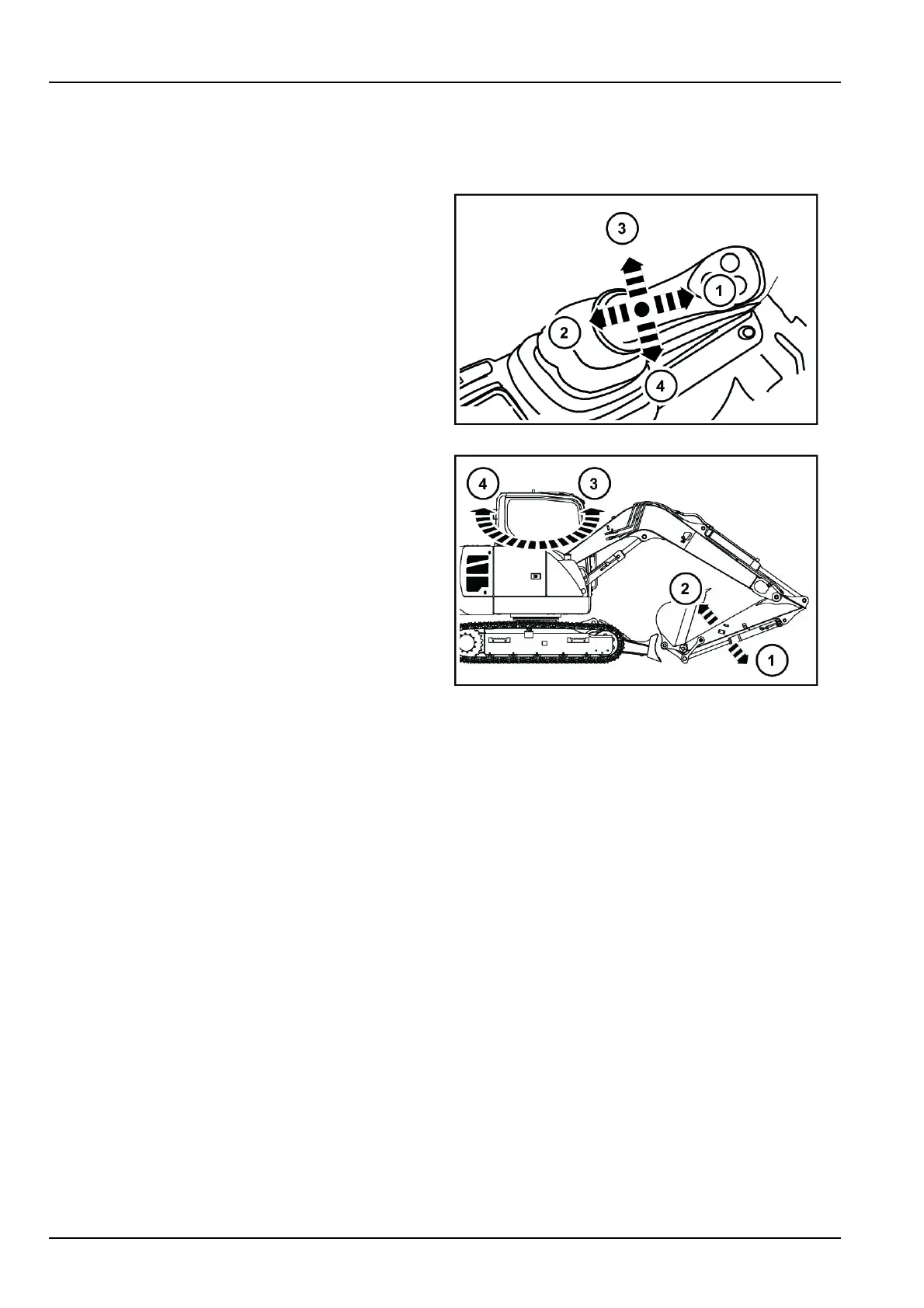

Armandupperstructureswingleftcontrol
lever
Thespeedofmovementofthearmortheupperstructure
swingdependsonthecontrollevertiltangle.Intheinter-
mediatepositiontwomovementscanbeobtainedsimul-
taneously.
NOTE:whentheupperstructureswingcontrolisre-
leased,theupperstructuremaycontinuetorotatedueto
theforceofinertia.Inthisevent,makeallowanceforthe
extramovementbyreleasingthecontrolslightlyearlier.
SMIL13CEX2577AB1
(1)Extendthearm
(2)Retractthearm.
(3)Swingtheupperstructuretotheleft
(4)Swingtheupperstructuretotheright
SMIL13CEX2578AB2
3-6
