CASE CONSTRUCTION CX75C SR - Front Right-Hand Console

3-CONTROLS/INSTRUMENTS
Frontright-handconsole

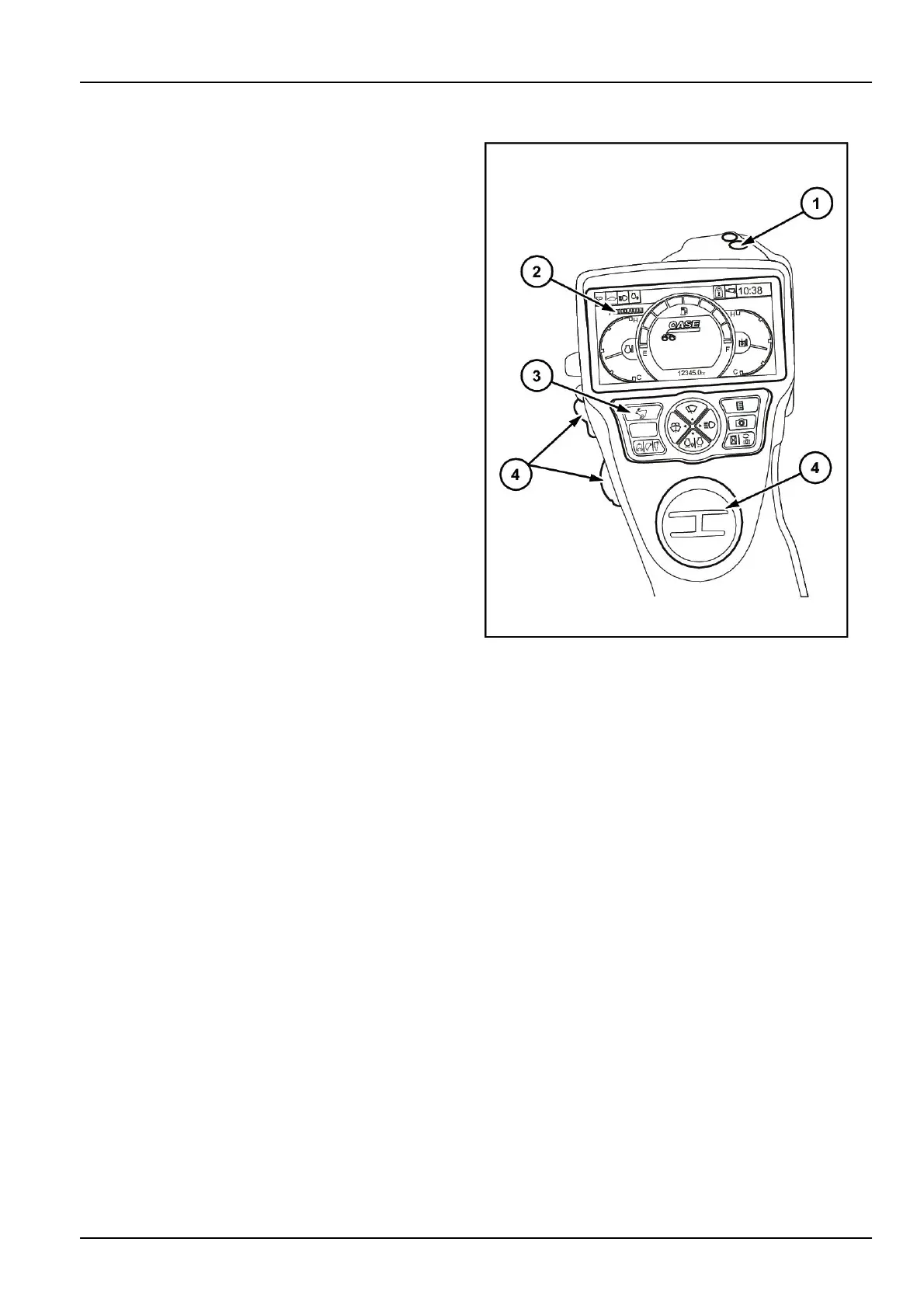

1.Temperatureprobe
Donotplaceobjectsontopofit.
2.Monitordisplay:
Clock,FuelMeter,CoolantWaterthermometer,hy-
draulicoilthermometer.
Displaysthefunctionselectionstatus.
Displaysthemachinestatus.
Displaysthebackmonitor.
Displaysthemachinemaintenancestatus.
3.Monitorswitch:
Selectsthemachinestatus.Themonitordisplaycan
beswitched.
4.Airvents:
Theairventscontrolthecirculationanddirectionofair
ow.Theairventsareopenedandcontrolledmanu-
ally.
NOTICE:Theairventsmustalwaysbeopenwhenthe
airconditioningisinuse.
