CASE CONSTRUCTION CX75C SR - Swing Bearing

6-MAINTENANCE
Swingbearing
Togreasetheswingbearingproceedasfollows:

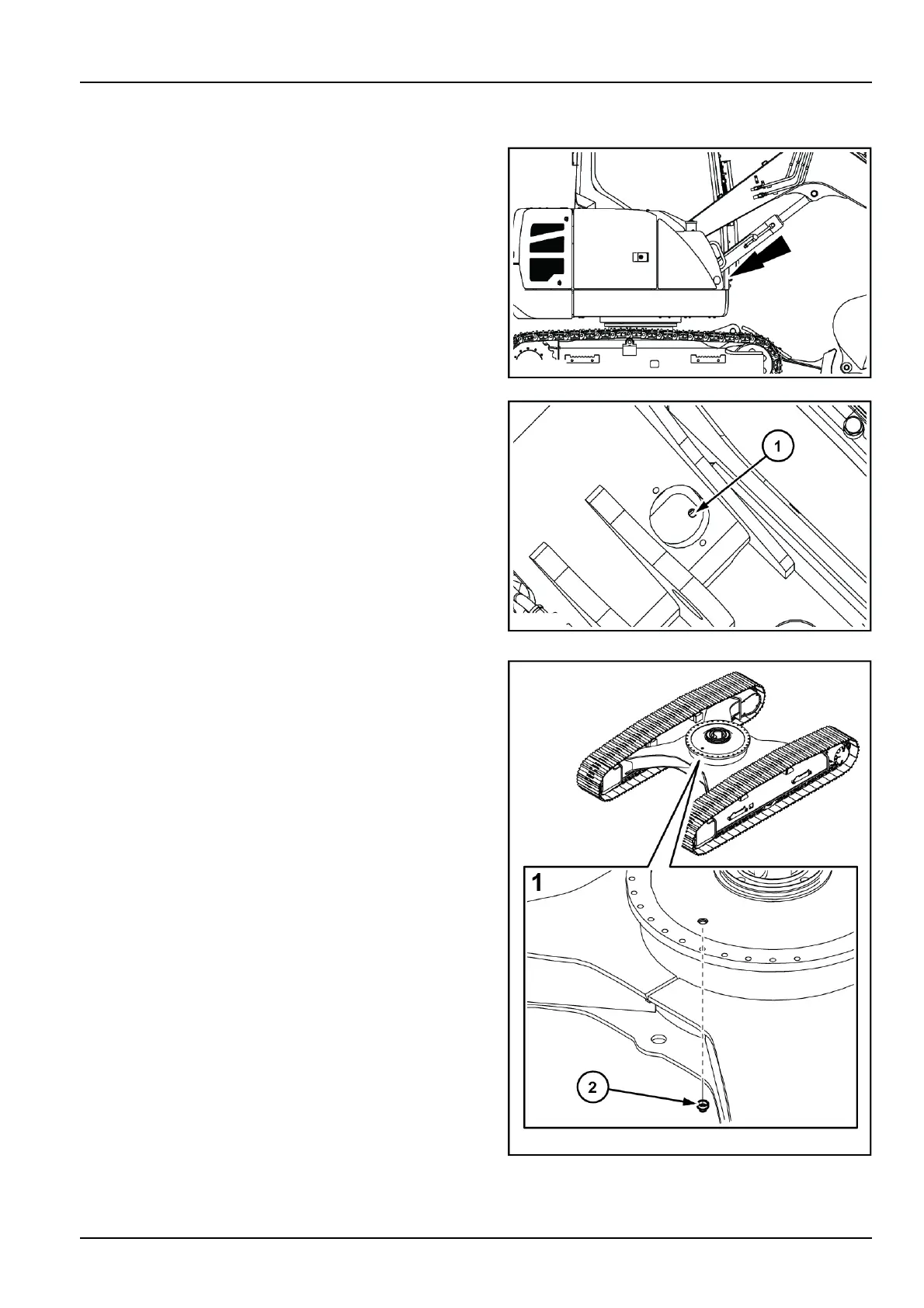

1.Removetheinspectioncover(1)andvisually
checktheconditionofthegearsurfaceandfor
anydamage.
2.Ifthegearsurfaceisnotwellgreased,add
grease.
SMIL13CEX2806AB1
SMIL13CEX2807AB2
Ifthepresenceofwaterisdetected,removetheplug
(2)anddrainoffthewater:
1.Removetheprotectivepanelfromthelower
centralarea.
2.Removeplug(2).
3.Dischargethewaterorcontaminatedgrease.
4.Installplug(2).
5.Injectnewgreasethroughtheportandinstall
theinspectioncover(1).
SMIL13CEX2808BB3
6-51
