6-MAINTENANCE

Every50hours

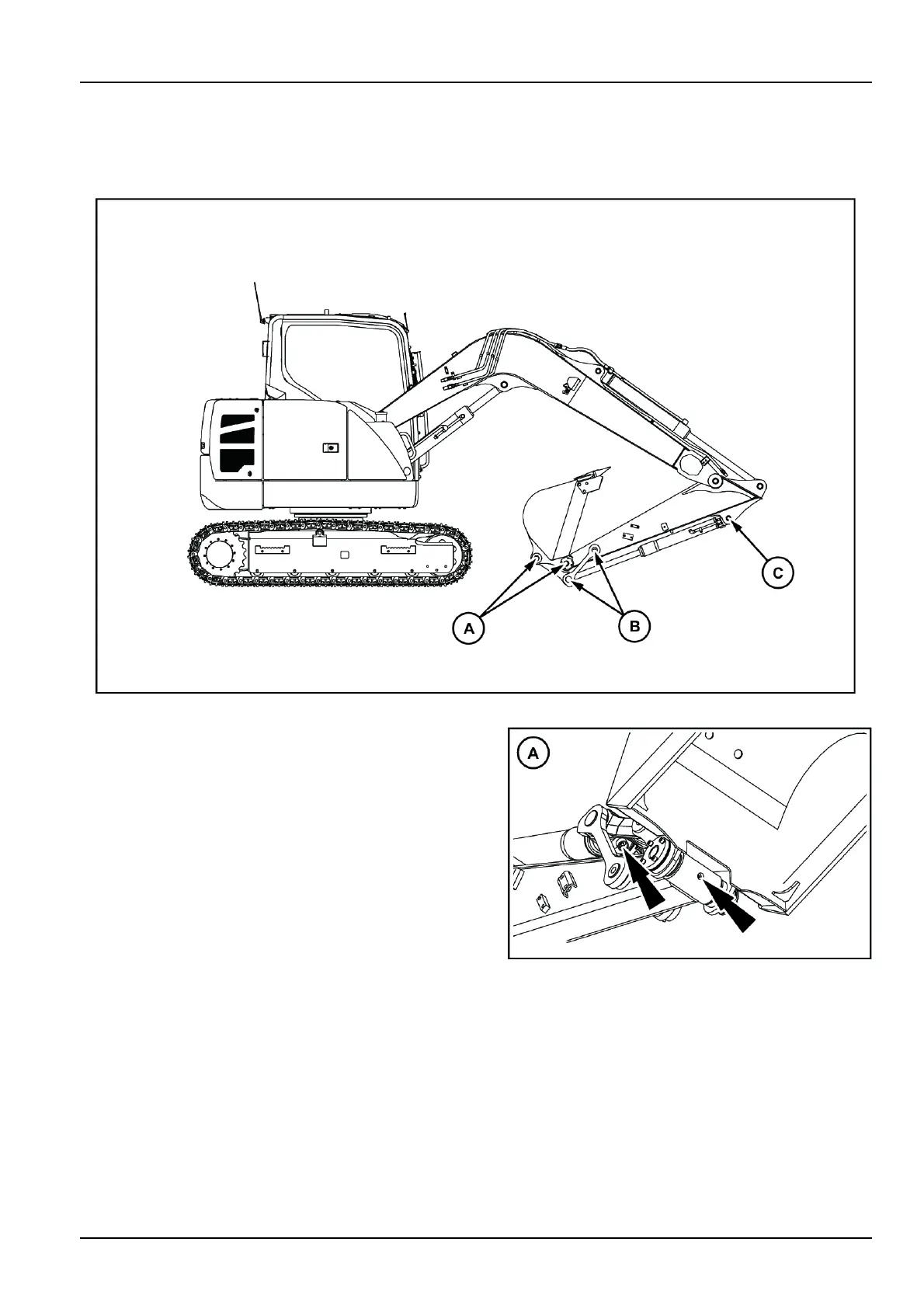

Greasepoints(Armandbackhoebucket)

SMIL13CEX2733FB1

Usingagreasegun,injectgreaseofthespecied

typeinthegreasepointsshowningures:

•

Bucketlinkages

NOTE:ifatoolotherthanthebucket(forexample,the

hydraulichammer)isinstalled,thesepointsmustbelubri-

catedevery10h.

SMIL13CEX2876AB2

6-19
